New ALTENDORF WA 80X | Standard Sliding Table Saws
Have one to sell?
ConditionNew
1 available
New
The WA 80X handles any material challenge with ease. It offers exceptional precision and outstanding cutting performance, making it ideal for processing various materials, including particle board, MDF panels, solid wood, wood-like materials, and plastics. The rip fence is electronically adjustable from an eye-level control, and the saw unit can tilt to one side for miter cuts. With its thoughtful design and robust build quality, this machine sets a new standard for sliding table saws in terms of both price and performance. It is fully developed and assembled in Germany and will provide many years of reliable service.
SLIDING TABLE
Sliding table length: 3200 mm (126”)
Cutting length: 3105 mm (124”)
Stop / start buttons integrated: Included
Table locking mechanism: Infinite
CROSSCUT FENCE
Type: Cross cut miter
Maximum width: 3500 mm (137”)
Type of cross stop: Manual
Number of stops: 2
Readout: scale
Miter angle capacity: 0 – 49°
RIP FENCE
Ripping capacity: 1300 mm (51”)
Adjustment: Programable
Readout: Digital
CONTROL
Control panel: Mounted on machine frame at eye level
Display: Digital for tilt angle, Rip fence position, Rise and fall of main saw, On / off main saw and scorer

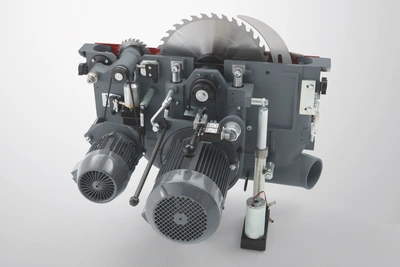

MAIN SAW UNIT
Motor: 5.5 kw (7.5 hp)
RPM: 3,000, 4000 & 5,000
Blade rise and fall adjustment: Powered
Tilt mechanism: Powered
Tilt range +46°
MAIN SAWBLADE DETAILS
Max blade dia: 450mm (scoring saw must be removed when using blade larger than 400mm)
Max blade width (Dado set for grooving): 20mm (0.78)”
Arbor dia: 30 mm (2 Pinholes)
Included main blade: 300 mm dia
Riving knives included: 3 (to suit blades 300 – 450 mm dia)
SAW BLADE PROJECTION
90° with max dia blade: 150 mm (5.9”) without scoring blade
+45° with max dia blade: 103 mm (4”) without scoring blade

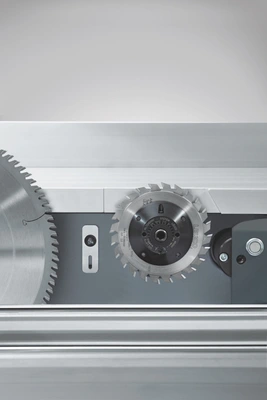

SCORING UNIT
Motor: 0.75 kW (1 hp)
RPM: 8,200
Scoring unit adjustment:
- Rise and fall: Motorized (automatic)
- Lateral: Manual"
Scoring blade: RAPIDO shimless system
LED indicator light for scorer: Included
SCORING BLADE DETAILS
Blade dia: 120 mm (4.7”)
Adjustment range: 3 – 3.8 mm (0.118” – 0.15”)
SERVICES
Connecting electrics: 220 or 440v 3ph 60Hz
Full load amps: 23 amps @ 220v, 13.5 amps @ 440v"
Dust extraction: Approx. 900 cfm
Saw guard port: 80 mm (3.15”)
Bottom port: 120 mm (4.75”)
SHIPPING DIMENSIONS
Two pieces, Approx length width height, weight
- Table: 140” x 30” x 18” 550lbs
- Machine: 91” x 75” x 78” 2700 lbs
