New ALTENDORF F 25 | Standard Sliding Table Saws
Have one to sell?
ConditionNew
1 available
New

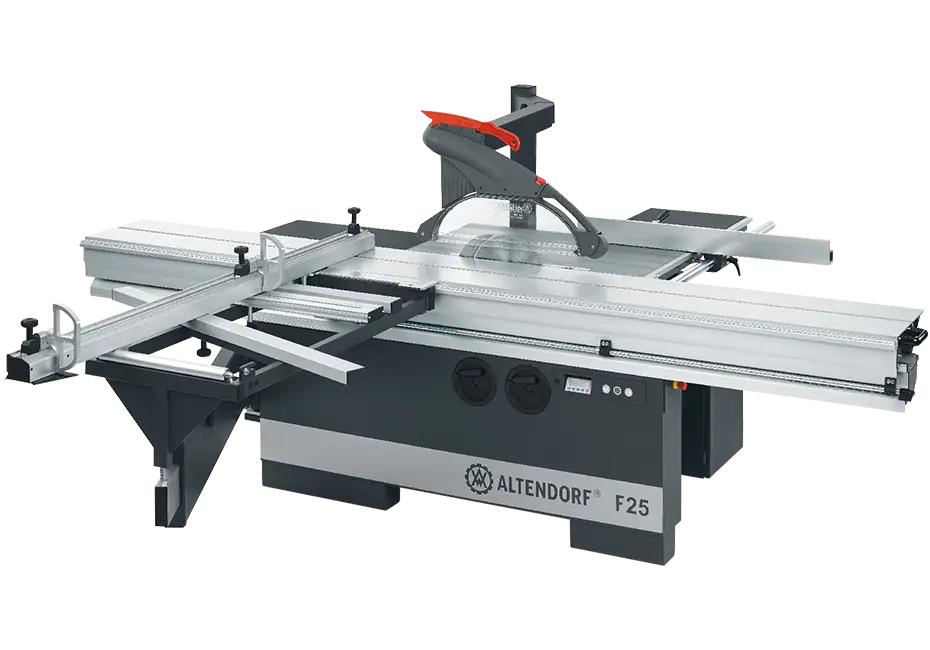

The Altendorf F 25 is a compact sliding table saw that offers all the necessary features while maintaining Altendorf's renowned quality. It provides exceptional precision, ease of use, and outstanding cutting performance, making it suitable for processing various materials, including particle board and MDF panels, solid wood, wood-like materials, and plastics. The saw unit can tilt to one side for miter cutting. The smooth-running sliding table is also based on the Altendorf system and comes standard with a digital display for height and tilt adjustments.
MAIN SAW UNIT
Motor: 4 kw (5.5 hp)
RPM: 4200 rpm

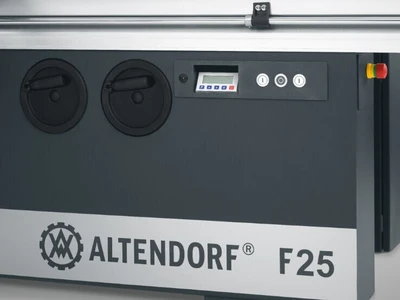

Blade rise and fall adjustment: Manual with LED digital readout
Tilt mechanism: Manual with LED digital readout
Tilt range: 0 - +46° (towards rip fence)
MAIN SAWBLADE DETAILS
Max blade diameter: 315mm (12.4”)
Max blade width: 5 mm (0.2”)
Arbor diameter: 30 mm
Pinholes: 2 x 10 mm @ 60 mm centers
Included main blade: 300 mm dia 72T
Riving knife included: To suit max blade diameter
SAW BLADE PROJECTION
90° with max dia. blade: 100 mm (3.9”) cutting height
+45° with max dia. blade: 70 mm (2.75”) cutting height
90° with 300 mm dia. blade: 92 mm (3.6”) cutting height
+45° with 300 mm dia. blade: 62 mm (2.4”) cutting height
SCORING UNIT
Scoring motor: 0.5 hp
SLIDING TABLE
Sliding table length: 3200 mm (125.9”)
Cutting length: 3100 mm (122”)
Table locking mechanism: Two positions
CROSSCUT FENCE
Type: Cross cut mitre
Maximum length: 3450 mm (135.8”) with included extension
Type of cross stop: Manual
Number of stops: 2
Readout: scale
Miter angle capacity: 0 – 49°
RIP FENCE
Ripping capacity: 1000 mm (39.3”)
Adjustment: Manual
Readout: Scale
SERVICES
Connecting electrics: 220 3ph 60Hz (acceptable tolerance range +5% - 10%)
Full load amps: 20 amps @ 220v
Dust extraction: Approx. 900 cfm
Saw guard port: 80 mm (3.14”)
Bottom port: 120 mm (4.75”)
SHIPPING DIMENSIONS
Two pieces Approx. length, width, height, weight
- Machine: 74” x 46” x 42” 1552 lbs
- Table: 131” x 17” x 13” 352 lbs"
