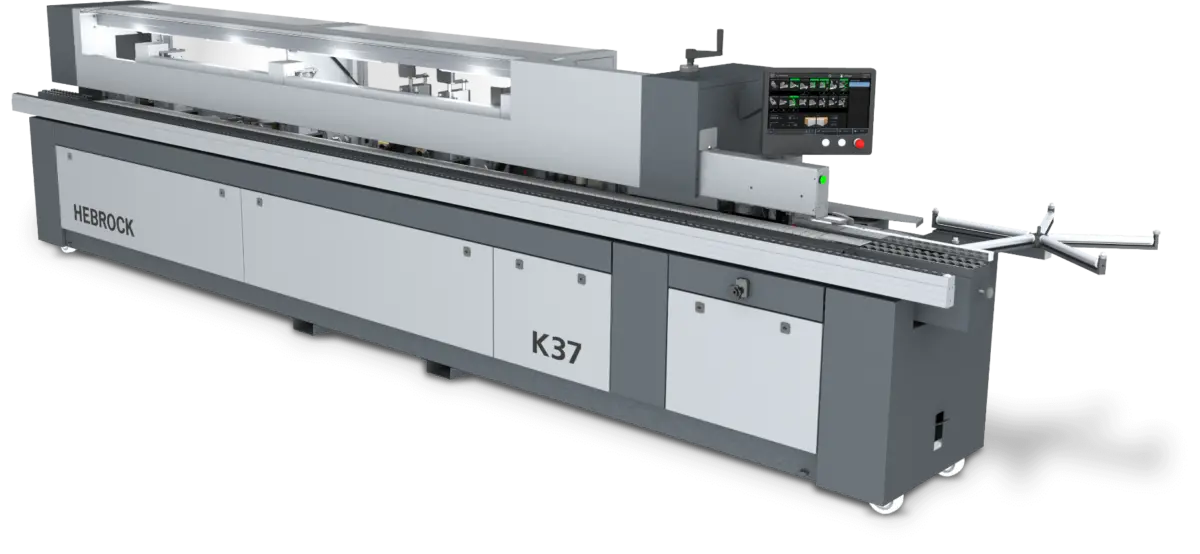

New ALTENDORF / HEBROCK K 37 | Industrial Edgebanders
Have one to sell?
ConditionNew
New
Maximum performance for maximum perfection.
Our largest machine gets the best out of everything for you.
The K 37 boasts unparalleled power and strength. Stay lengths ahead of the competition.
This high-performance power pack offers perfect edge banding with ultimate comfort and innovative features. The 15” touchscreen display alone sets new standards in user-friendly operation. Demand the best with this forerunner in performance and lifespan. Made in Germany.
Technical Features
• Feed speed up to approx. 15 m/min*
• Greater ease of use
• Integrated glue changing device
• Compact frame design
*Without using a corner router, depending on the type of the configuration
Benefits
• Interchangeable glue pot can be heated in 6 mins
• Adhesive/colour change
• Optional zero-joint technology
• Intuitive control
Software/Control
• 15” LED touchscreen
• Easy-to-read display with integrated 3D feature
• Revolving and tilting control options
• USB interface
• Meter and running time counter
• Resistant to dust
Basic features
• Manual adjustment of edge and pre-milling thickness plus workpiece height
• Support plate for edge material
• Visual display for workpiece sequence using LEDs at machine inlet
• PLC control (including 15” touchscreen)
• Pre-milling cutter (including DIA tool) up to 3 mm milling depth with interchangeable blade design x (WhisperCut)
• Overhead interchangeable glue pot with Teflon coating and adhesive stop function
• Glue application to the workpiece for edge material up to 3 mm
• Double motor trim saw for precise processing of front and rear edge workpiece
• HF milling station with pneumatic milling adjustment and combi-blade system (radius/chamfer/flush)
• 2nd HF milling station with double radius milling cutters
• Corner rounding unit with combined unit (radius/chamfer)
• Radius profile scraper with reversible blade
• Surface scraper including dual keying
• Cleaning station
• Grooving saw unit with tool allocation
• Conveyor chain with screw-fixed special chain plates
• Bearing-mounted top pressure bar
• Pull-out cantilever arm (on front)
• Viewing window on front and rear of machine
• Automatic central lubrication of rounding unit corner
• Cross-cut saw chip collection tray
• Feed speed up to approx. 15 m/min* (*Without using a corner router, depending on the type of the configuration)
