Altendorf K36 S Edgebander – High Performance Edgebanding System
Pre-Milling, Corner Rounding, Scraping, Buffing, Touchscreen Control, EVA/PUR Glue System
This is a late-model Altendorf / Hebrock K36 S edgebander designed for high-quality edge processing in cabinet, millwork, and panel processing environments.
The machine is equipped with a full processing package including pre-milling, glue application with quick-change glue pot, end trimming, profile milling, corner rounding, scraping, and buffing. The system is built for consistent, repeatable results across a wide range of materials.
Suitable for processing MDF, particleboard, and plywood panels, with laminate, solid wood and plastic edge materials.
Commonly used as an edgebander, edgebanding machine, cabinet edgebander, or woodworking edge processing system.
Machine Specifications
• Make: Altendorf / Hebrock
• Model: K36 S
• Machine Type: Automatic Edgebander
• Feed Speed: Approx. 15 m/min (49 FPM)
• Edge Thickness Capacity: Up to 3mm coil / 8mm strip
• Panel Thickness Capacity: 8 – 40 mm
• Minimum Panel Length: 120 mm
• Minimum Panel Width: 80 mm
---
Control System

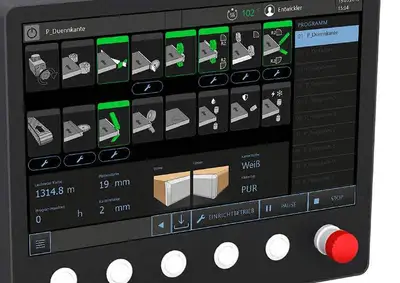

• 15” touchscreen PLC control
• 3D visualization of panel processing
• Programmable operation with stored settings
• Plain-text diagnostics and status monitoring
• Swivel-mounted operator control panel
---
Machine Configuration
• Pre-milling station with diamond tooling (WhisperCut)

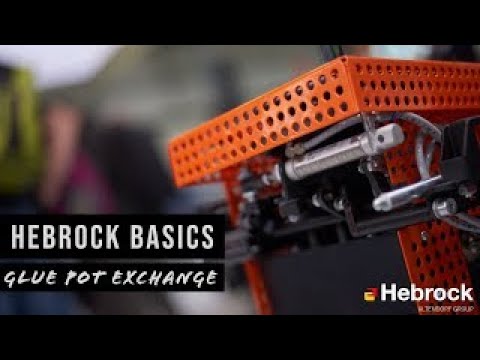

• Glue station with quick-change glue pot (EVA / PUR compatible)
• Automatic glue pot refill with level monitoring
• Pressure zone with multi-roller system
• Double motor end trim saw unit
• Top and bottom trimming / profile milling
• 3-point adjustable milling station
• Corner rounding unit (R2 standard)
• Profile scraping (R1 / R2 capability)
• Flat scraping system (top and bottom)
• Buffing / polishing station
• Cleaning spray system
• LED interior lighting
---
Performance Specifications
• Pre-milling motor: 2 x 2.2 kW
• Milling motors: 2 x 0.37 kW
• Trim saw motors: Dual motor configuration
• Corner rounding speed: Approx. 12,000 RPM
• Glue pot heat-up time: Approx. 6 minutes
---
Electrical / Requirements
• 3 Phase Power (220V or 440V via transformer)
• Recommended dust extraction: approx. 1,600 CFM
• Extraction ports: 80mm and 140mm
---
Machine Dimensions
• Approx. 206” L x 48” W x 60” H
• Weight: Approx. 3,860 lbs
---
Applications
• Cabinet manufacturing
• Closets and casework
• Architectural millwork
• Panel processing and furniture production
---
Additional Notes
• High-performance edgebander with full processing capability
• Designed for continuous production environments
• Fast setup and quick adhesive changeover
• Consistent edge quality across multiple materials
• Built for durability and low maintenance operation
• Freight and financing options available
