New ALTENDORF / HEBROCK K 36 | Industrial Edgebanders
Have one to sell?
ConditionNew
New
Always in high-performance mode.
Quietly set your sights higher.

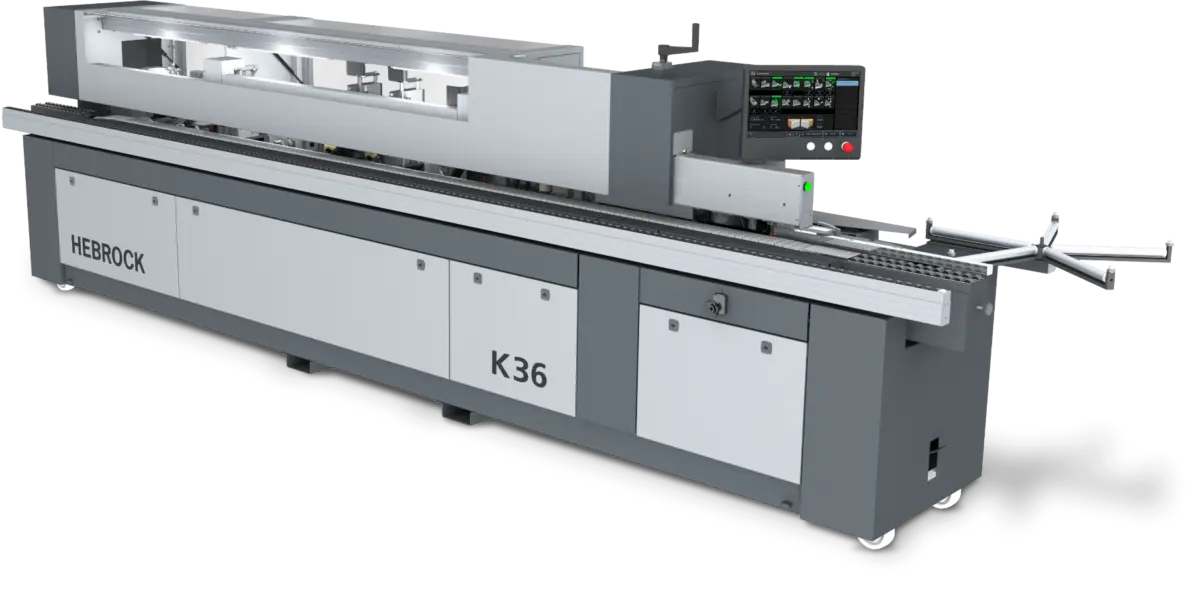

The HEBROCK K 36 achieves this with flying colours to deliver top performance each day. See for yourself. The robust, high-performance, and reliable machine is relentless when it comes to producing at a top level. Do you require extremely accurate edge processing? Perfect!
You have the option of equipping the machine with a second milling unit and multi-radius scraper for even more accurate results. Reach your goal with our all-time favorite.
Technical Features
• Feed speed up to approx. 15 m/min*
• Greater ease of use
• Integrated glue changing device
• Compact frame design
**Without using a corner router, depending on the type of the configuration
Benefits
• Interchangeable glue pot can be heated in 6 mins
• Adhesive/colour change
• Optional zero-joint technology
• Intuitive control
Software/Control
15” LED touchscreen
• Easy-to-read display with integrated 3D feature
• Revolving and tilting control options
• USB interface
• Meter and running time counter
• Resistant to dust
Basic Features
• Manual adjustment of edge and pre-milling thickness plus workpiece height
• Support plate for edge material
• Visual display for workpiece sequence using LEDs at machine inlet
• PLC control (including 15” touchscreen)
• Pre-milling cutter (including DIA tool) up to 3 mm milling depth with interchangeable blade design x (WhisperCut)
• Overhead interchangeable glue pot with Teflon coating and adhesive stop function
• Glue application to the workpiece for edge material up to 3 mm
• Double motor trim saw for precise processing of front and rear edge workpiece
• HF milling station with pneumatic milling adjustment and combi-blade system (radius/chamfer/flush)
• 2nd HF milling station with double radius milling cutters
• Corner rounding unit with combined unit (radius/chamfer)
• Radius profile scraper with reversible blade
• Surface scraper including dual keying
• Cleaning station
• Conveyor chain with screw-fixed special chain plates
• Bearing-mounted top pressure bar
• Pull-out cantilever arm (on front)
• Viewing window on front and rear of machine
• Automatic central lubrication of rounding unit corner
• Cross-cut saw chip collection tray
• Feed speed up to approx. 15 m/min* (*Without using a corner router, depending on the type of the configuration)t)
