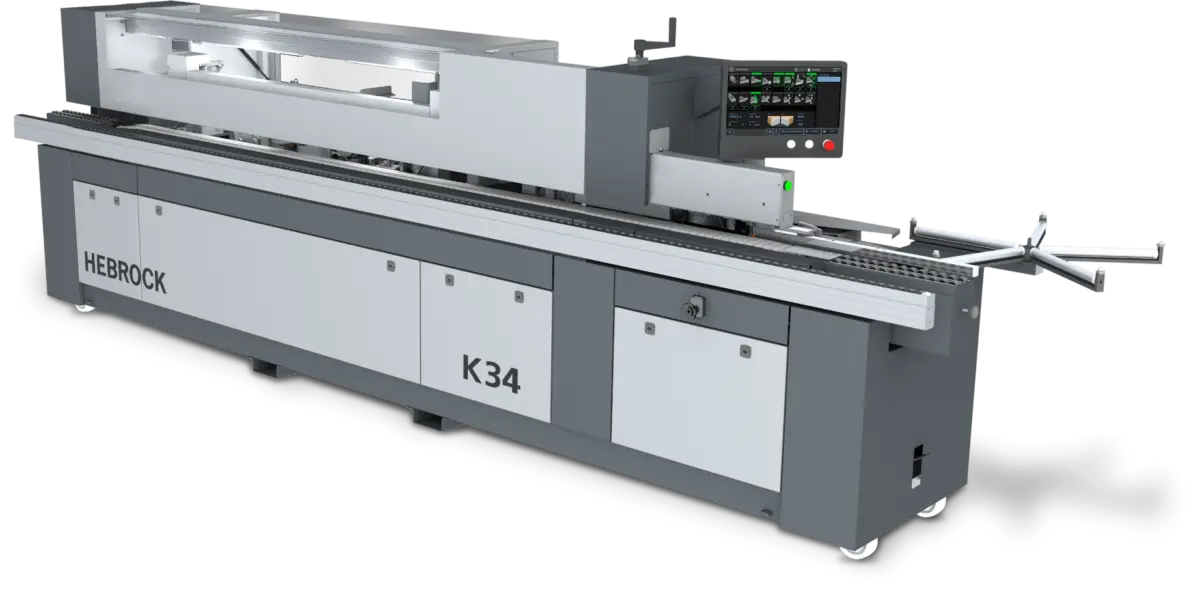

New ALTENDORF / HEBROCK K 34 | Industrial Edgebanders
Have one to sell?
ConditionNew
New
A power pack for your workshop.
Top-quality requirements demand
maximum power.
Even if you place the bar high, there’s still air above it. That’s because “good” can always be “better”. This has been impressively proven with the successful update to our K-SERIES. Experience edge banding machines with even more user-friendly features. For greater output and performance. Non-stop. Discover the powerful newcomer in this renowned K-SERIES: the K 34.
Are you ready for a next-generation performance?
Technical Features
• Feed speed up to approx. 15 m/min*
• Greater ease of use
• Integrated glue changing device
• Compact frame design
*Without using a corner router, depending on the type of the configuration
Benefits
• Interchangeable glue pot can be heated in 6 mins
• Adhesive/colour change
• Optional zero-joint technology
• Intuitive control
Software/Control
• 15” LED touchscreen
• Easy-to-read display with integrated 3D feature
• Revolving and tilting control options
• USB interface
• Meter and running time counter
• Resistant to dust
Basic Features
• Manual adjustment of edge and pre-milling thickness plus workpiece height
• Support plate for edge material
• Visual display for workpiece sequence using LEDs at machine inlet
• PLC control (including 15” touchscreen)
• Pre-milling cutter (including DIA tool) up to 3 mm milling depth with interchangeable blade design x (WhisperCut)
• Overhead interchangeable glue pot with Teflon coating and adhesive stop function
• Glue application to the workpiece for edge material up to 3 mm
• Double motor trim saw for precise processing of front and rear edge workpiece
• HF milling station with pneumatic milling adjustment and combi-blade system (radius/chamfer/flush)
• Corner rounding machine in combination version (radius/bevel)
• Radius scraper with reversible blade
• Surface scraper incl. dual keying
• Cleaning station
• Grooving saw unit with tooling
• Transport chain with firmly bolted special chain plates
• Ball bearing double top pressure
• Extendable boom (to the front)
• Viewing window at the front and rear of the machine
• Automatic central lubrication of the corner milling machine
• Chips collection box of the crosscut saw
• Feed speed up to approx. approx. 15 m/min* (*Without using a corner router, depending on the type of the configuration)
