New ALTENDORF / HEBROCK F 5 | Professional Edgebanders
Have one to sell?
ConditionNew
1 available
New
Edge machining at the highest level
Top quality, one step ahead.

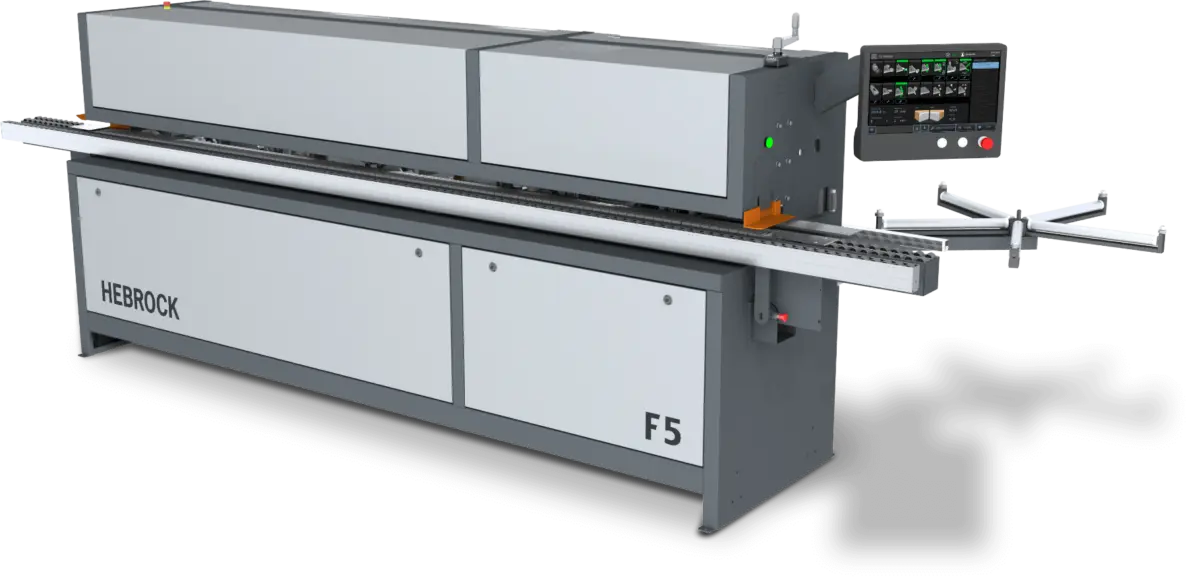

The HEBROCK F 5 produces edges to meet and exceed even the highest customer requirements. Premium craftsmanship requires perfection that our all-in-one model reliably delivers. Day after day. The F 5 is equipped with all the components you need for top-quality results, such as a jointing cutter, cross-cut saw, milling unit, radius scraper, corner rounding, flat scraper, and cleaning station. Want to achieve the ultimate finish? This high-performance model does plenty at the push of a button.
Technical Features
• Feed speed 10 m/min
• Higher cover
• Greater ease of use
• Optional cleaning station
• Integrated adhesive changing device
• Compact frame design
Benefits
• Interchangeable glue pot can be heated in 3.5 mins
• Adhesive/colour change
• Flat scraper including dual keying
• Intuitive control
• Integrated cleaning station for polishing edge material
Software/Control
• 15“ LED touchscreen
• Easy-to-read display with integrated 3D feature
• Revolving and tilting control system
• USB interface
• Meter and running time counter
• Resistant to dust
Basic Features
• Manual adjustment of edge and pre-milling thickness
• SPS control (including 15” touchscreen)
• Glue application to the workpiece for edge material up to 3 mm
• Support plate for the edge material
• Visual display for workpiece sequence using LEDs at machine inlet
• Pre-milling cutter (including DIA tool) up to 2 mm jointing cutter depth with interchangeable blade design (WhisperCut)
• Overhead changeable glue pot with Teflon coating and glue-changing device
• Trim saw for precise processing of front and rear edge workpiece
• HF milling station with pneumatic milling adjustment and combi-blade system (radius/chamfer/flush)
• Corner rounding unit
• Radius profile scraper
• Surface scraper with dual-tracing
• Cleaning station
• Conveyor chain with screw-fixed special chain plates
• Double roller overhead pressure system (ball-bearing mounted)
• Workpiece support (folds out to front)
• Viewing window on the rear of the machine
• Feed speed approx. 10 m/min
