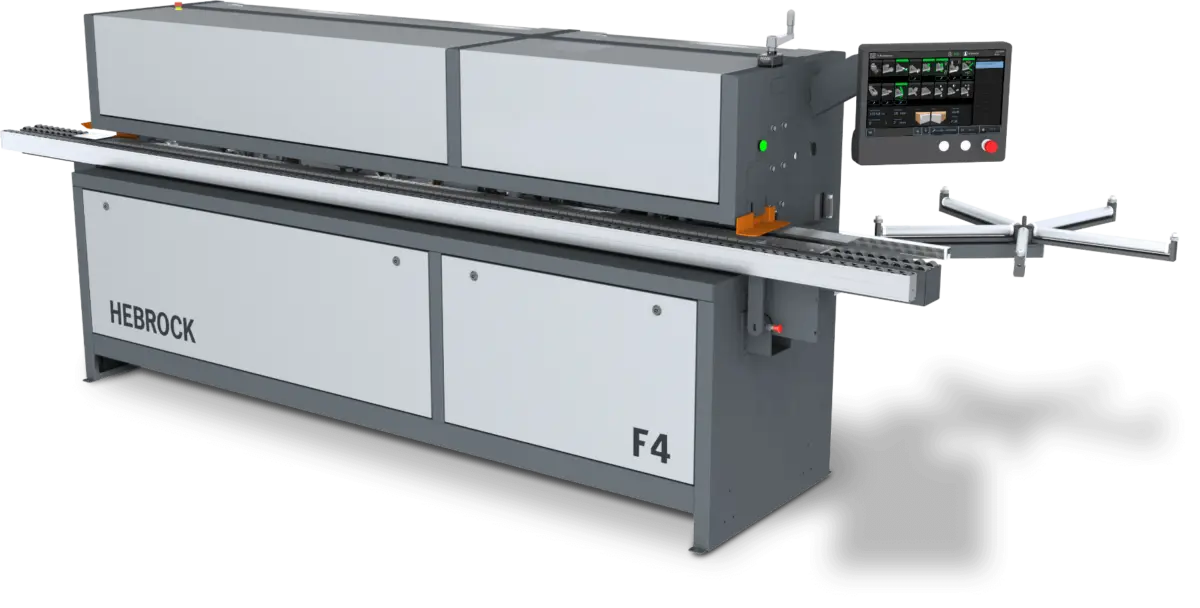

New ALTENDORF / HEBROCK F4 | Professional Edgebanders
Have one to sell?
ConditionNew
1 available
New
This model impresses across the board.
Smaller size, same performance.
The space-saving F 4 measures just 4 metres long. However, it is ideal for producing fully machined edges. It comes optimally equipped, even in its standard version. It will surprise you with its jointing technology, corner processing and flat scraper. An optional radius scraper is available for finishing off edges. And there’s plenty more. The integrated interchangeable glue pot (colour change) even allows PUR processing. Set your sights on this diverse model!
Technical Features
• Feed speed 10 m/min
• Higher cover
• Greater ease of use
• Optional radius cutter
• Optional cleaning station
• Integrated adhesive changing device
• Compact frame design
Benefits
• Interchangeable glue pot can be heated in 3.5 mins
• 3D graphic symbols
• WhisperCut with interchangeable DIA tools
• Adhesive/colour change
• Flat scraper including dual keying
Software/Control
• 15“ LED touchscreen
• Easy-to-read display with integrated 3D feature
• Revolving and tilting control system
• USB interface
• Meter and running time counter
• Resistant to dust
Basic Features
• Manual adjustment of edge and pre-milling thickness
• SPS control (including 15” touchscreen)
• Glue application to the workpiece for edge material up to 3 mm
• Support plate for the edge material
• Visual display for workpiece sequence using LEDs at machine inlet
• Pre-milling cutter (including DIA tool) up to 2 mm jointing cutter depth with interchangeable blade design (WhisperCut)
• Overhead changeable glue pot with Teflon coating and glue-changing device
• Trim saw for precise processing of front and rear edge workpiece
• Corner rounding unit
• Surface scraper with dual-tracing
• Conveyor chain with screw-fixed special chain plates
• Double roller overhead pressure system (ball-bearing mounted)
• Workpiece support (folds out to front)
• Viewing window on the rear of the machine
• Feed speed approx. 10 m/min
• HF milling station with pneumatic milling adjustment and combi-blade system (radius/chamfer/flush)
