STRATOS Series Traveling Gantry 3-axis Machining Center
Have one to sell?
ConditionNew
New

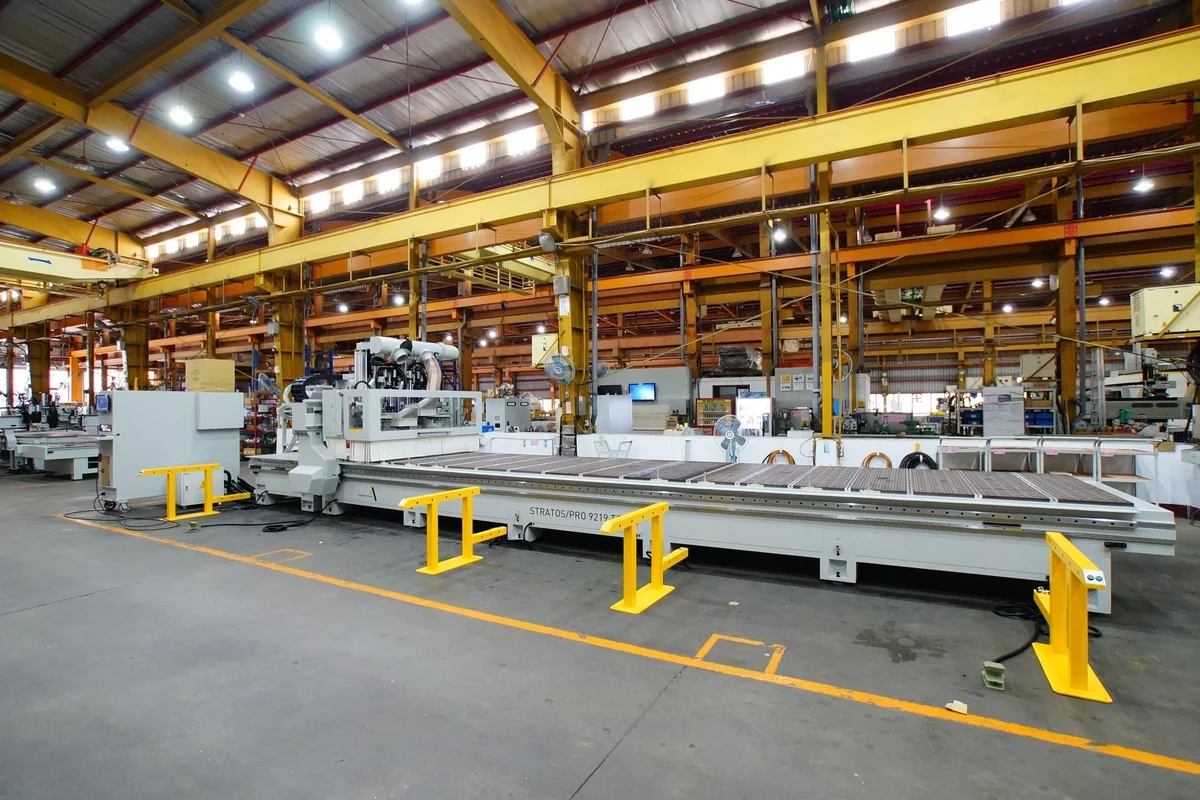

Introducing the STRATOS Series Traveling Gantry 3-axis Machining Centers
Experience a new level of CNC accuracy and machining performance with the Stratos Pro Half Line and Full Line. Our machining centers set a new standard in cost-effective, high-speed CNC machining.
Unmatched Precision and Performance
With a robust base and castings, coupled with a high-accuracy FANUC Servo System, the STRATOS machining centers are the perfect solution for processing a wide range of materials.
Key Features:
• Versatile Material Processing: Ideal for wood, MDF, plywood, plastic, honeycomb aluminum, and solid surface materials.
• Anderson’s Traveling Gantry Design: Ensures effortless machine access.
• Modular Design: Available in a range of formats and sizes.
• Ethernet Options: Enables remote technical support.
• Optional C-Axis: Enhances your machining capabilities.
• Workpiece Holding Flexibility: Optional clamping, grid, or manifold vacuum systems.
No. of vacuum zones 4
Table size X 3700 mm (146 in)
Table size Y 1600 (63 in)
Stroke of X-axis 3900 mm (154 in)
Stroke of Y-axis 2180 mm (86 in)
Stroke of Z-axis 350 mm (14 in)
Rapid travel Speed in X 100 M/min (3937”/min)
Rapid travel Speed in Y 100 M/min (3937”/min)
Rapid travel Speed in Z 30 M/min (1181“/min.)
Maximum Rapid Traverse 141 M/min (5551”/min)
SPINDLE DATA
Power 18 HP
Max. Speed (rpm) 24000
Clamping system HSK 63
Ride along tool changer 10 / 12
Boring block 5+5 or 10+7
Vacuum pump 10/25/40 HP
Controller FANUC 0i
