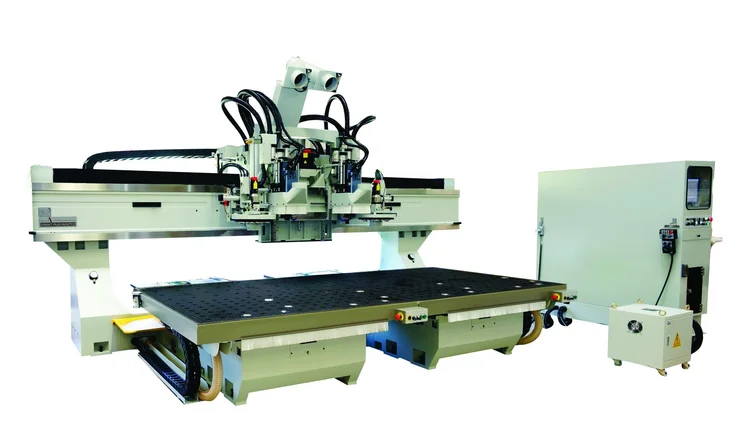

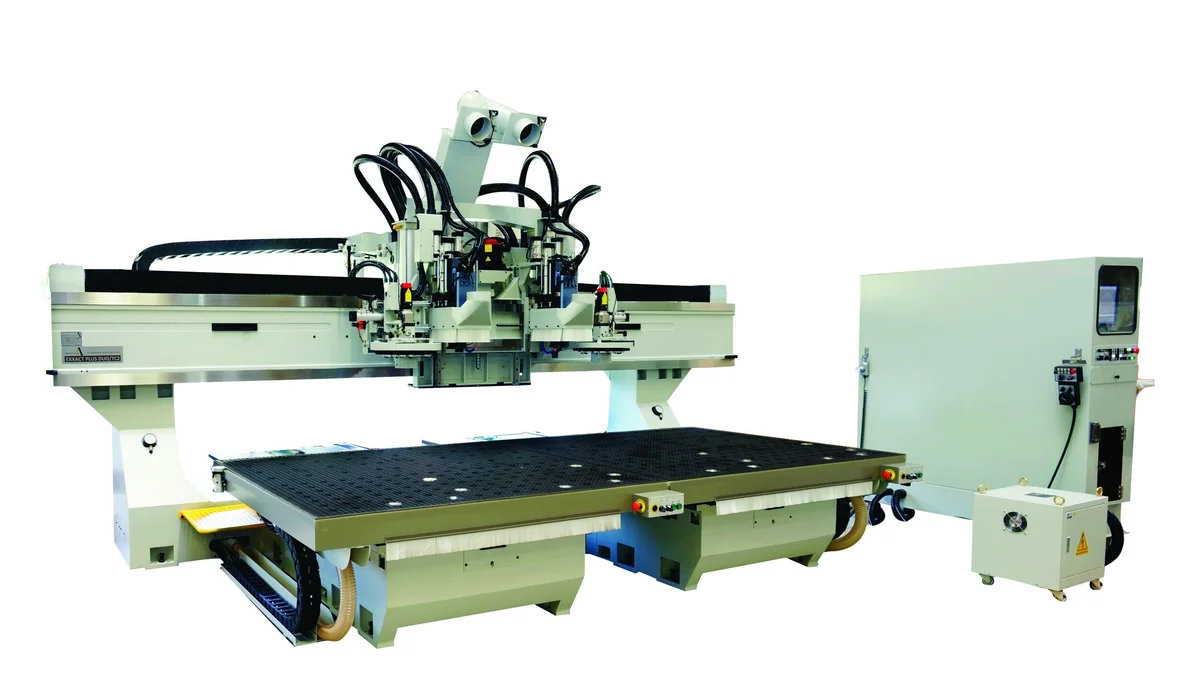

Introducing the EXXACT Series Moving Table 3-axis Machining Centers
The EXXACT Series Moving Table 3-axis machining centers are redefining the standards of CNC accuracy and machining performance. With their unparalleled precision and robust design, they offer an unmatched level of efficiency in the industry. Experience the revolution in CNC machining with the EXXACT Series, where superior performance meets cutting-edge technology.
Superior Accuracy and Unrivalled Efficiency
Equipped with a sturdy base and castings, and complemented by a high-precision Servo System, the EXXACT machining centers serve as an ideal platform for handling a diverse array of materials with ease and efficiency.
Key Features:
• Versatile Material Processing: Ideal for wood, MDF, plywood, plastic, aluminum, and composite materials.
• Anderson Fixed Bridge and Moving Table Design: Ensures effortless machine access.
• Webbed Steel Substructure: Remains smooth and rigid while cutting in X, Y, and Z-axis.
• Ethernet Options: Enables remote technical support.
• Optional C-Axis: Enhances your machining capabilities.
Workpiece Holding Flexibility: Optional clamping, grid, or manifold vacuum systems.
No. of tables 1
No. of vacuum zones per table 1 or 2
Table size X 3700 mm (146 in)
Table size Y 1600 mm (63 in)
Stroke of X-axis 4400 mm (174 in)
Stroke of Y-axis 1775 mm (70 in)
Stroke of Z-axis 350 mm (14 in)
Rapid travel Speed in X 80 M/min (3150“/min.)
Rapid travel Speed in Y 80 M/min (3150“/min.)
Rapid travel Speed in Z 30 M/min (1181“/min.)
Spindle Data
Power 18 HP / 24 HP
Max. Speed (rpm) 24000
Clamping system HSK-63F
Ride along tool changer 10 / 12
Boring block 5+5 or 10+7
Vacuum pump 10/25/40 HP
Controller FANUC 0i
Dimensions: Floor Area 6000 x 3375 mm (236 x 133 in)
Height 2800 mm (110 in)
Weight 9300 kg (20,500 lbs.)
