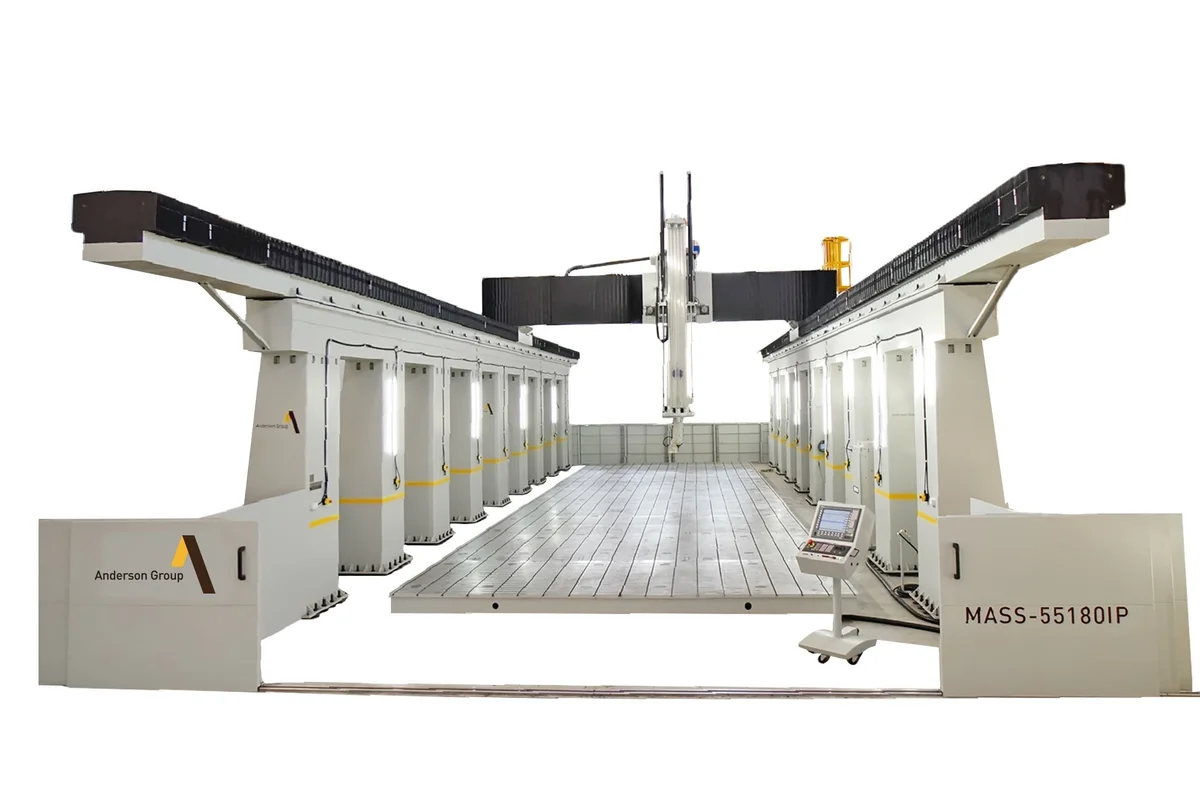

Introducing the MASS 5 Series
With the Maxxis 5-Axis Series, step into a world of enhanced precision and performance. Designed to deliver superior quality, this series is a testament to Anderson's commitment to innovation and excellence in machining solutions.
Superior Precision and Performance
The Maxxis 5-Axis Series, equipped with FANUC control & electronics systems, promises unmatched precision and performance in a wide array of applications. Its robust construction and advanced features make it a reliable addition to any manufacturing process.
Key Features:
• 5-Axis Precision: Provides superior control and precision in machining complex parts.
• Versatile Material Processing: Ideal for wood, MDF, plywood, plastic, honeycomb aluminum, and solid surface materials.
• Anderson Traveling Gantry Design: Ensures effortless machine access.
• Modular Design: Available in a range of formats and sizes.
• Ethernet Options: Enables remote technical support.
Application Composites/Aluminum
Table configuration Open Gantry
Table Style open, flat steel, T slot
Zones 1 zone
Table Size in mm (metric) width : 3000 - 6000 mm (118 - 236 in) length : 6000 - 16000 mm (236 - 630 in)
Table Height optional
Standard Z (stroke) #1 1000 - 3000 mm (39.3 - 118 in)
B and C-axis B : ± 100° | C : ± 200°
Control FANUC 31i or SIEMENS 840D
Router Spindle 12 HP, 18 HP, 24 HP (HSK 63F, 22000 rpm)
25 HP Vector (HSK 63E, 18000 rpm)
Automatic Tool Changer ATC : 10, 12, 16, 20
Ranrob : 12, 16, 20, 32
Barriers optional
Vac. Prep Kit optional
Pump Size 10,25,40,50 HP (options)
Safety fence optional
X-Drive System Rack
Y-Drive System Rack
Z-Drive System Ball Screw
rapids/cutting X,Y,Z X;Y;Z=36/36/12 m/m
rapids/cutting C, B B&C=60°/sec 24 m/m
Remote Internet Diagnostics yes
Tool Holders included
