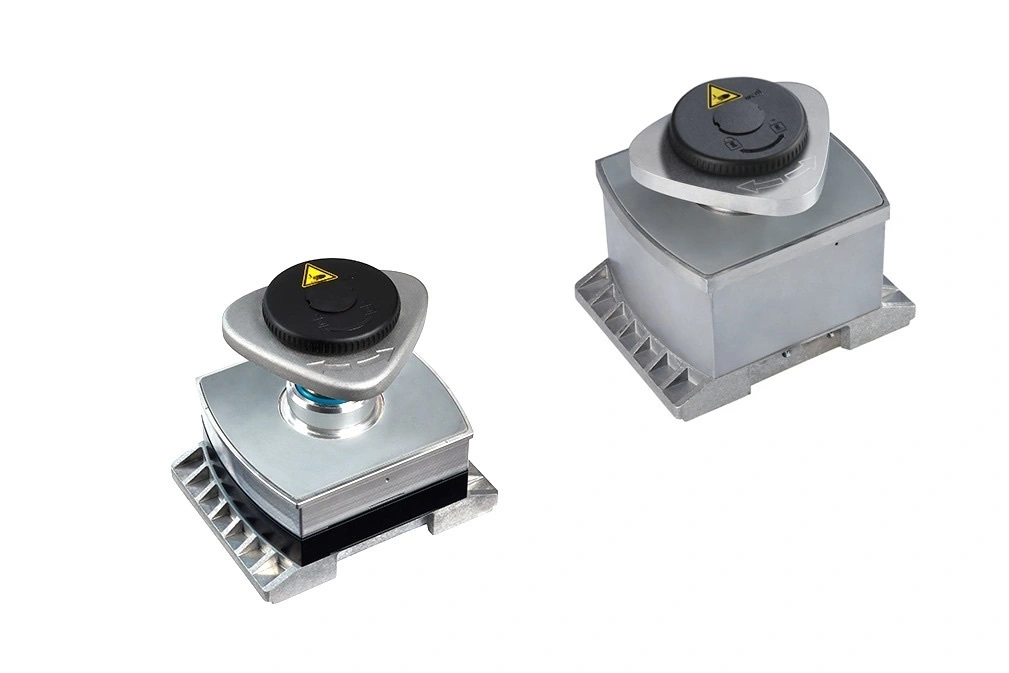

Mechanical Clamps VCMC-K2-QUICK

Description

• Mechanical clamping system for CNC machining centers with console table (two-circuit system)

• Particularly suitable for narrow and curved workpieces such as frame parts and window profiles

• For setup, the clamp is fixed to the console with the first vacuum circuit and optionally also mechanically clamped; the clamping height is adapted to the workpiece with the tool-free quick adjustment

• Clamping of the workpiece by activating the second vacuum circuit on the machine table

Product Highlights

• Triangular clamping disc with tool-free quick adjustment enables shortest setup times

• Clamping forces up to 700 N guarantee high holding forces even on narrow workpieces

• Fixation by vacuum and optional mechanical clamping secure the clamp on the console

• No additional medium required on the machine, as the clamping device is activated by the operating vacuum of the CNC machining center

• Special friction materials on the clamping disc and clamping surface ensure that the workpiece is held securely even with high machining forces
