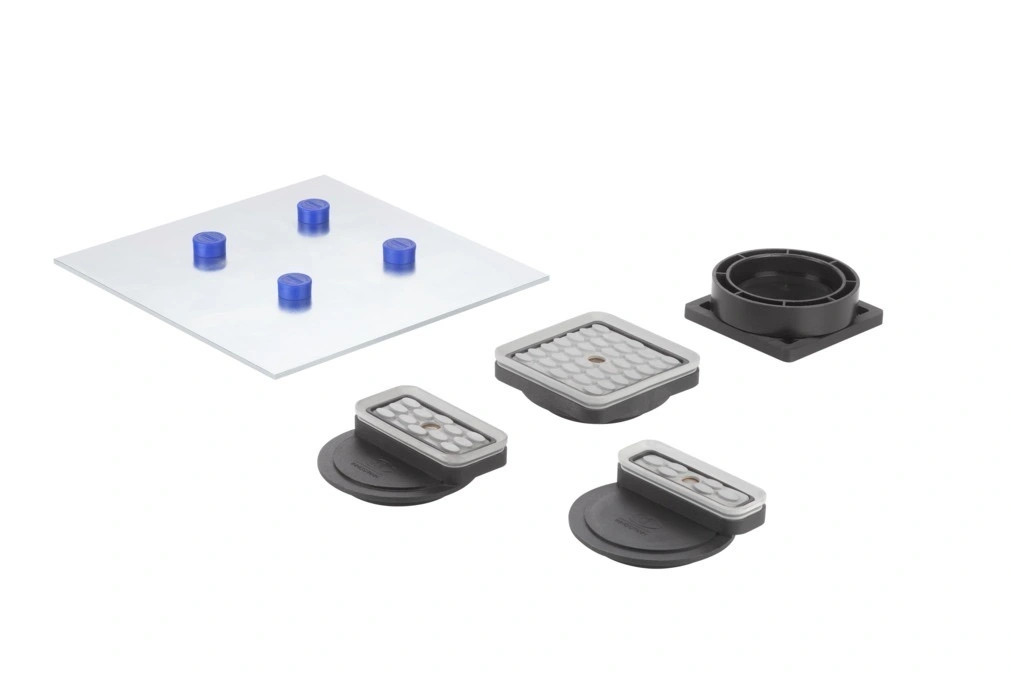

Adapter-Plates ISAP-B

Description

• Hose-free vacuum clamping system from Schmalz for console tables from Biesse (single-circuit system)

• The Adapter-Plates are positioned directly into the suction cup mounts on the consoles

• The Adapter-Plates can be flexibly equipped with up to four additional Mono-Bases ISMB and suction cups ISCUP

• Particularly suitable for narrow and curved workpieces with small suction surfaces and delicate molds

• The modular concept with connectible spacer rings enables various working heights, which allows for mixed use with suction cups from the original equipment manufacturer

• Damage-free clamping with highest precision and holding force

Note - Biesse
Biesse is a registered and protected trademark. The articles listed here are products of J. Schmalz GmbH that have been designed to fit CNC machining centers from Biesse.

Product Highlights

• Ideal for narrow and curved workpieces, as plates and vacuum blocks can be flexibly combined

• Freely positionable suction cups and Mono-Bases allow almost any clamping layout

• Mixed operation with standard vacuum blocks possible for even more flexibility and short set-up times

• Accessories and spare parts can be replaced quickly, easily and cost-effectively without tools
