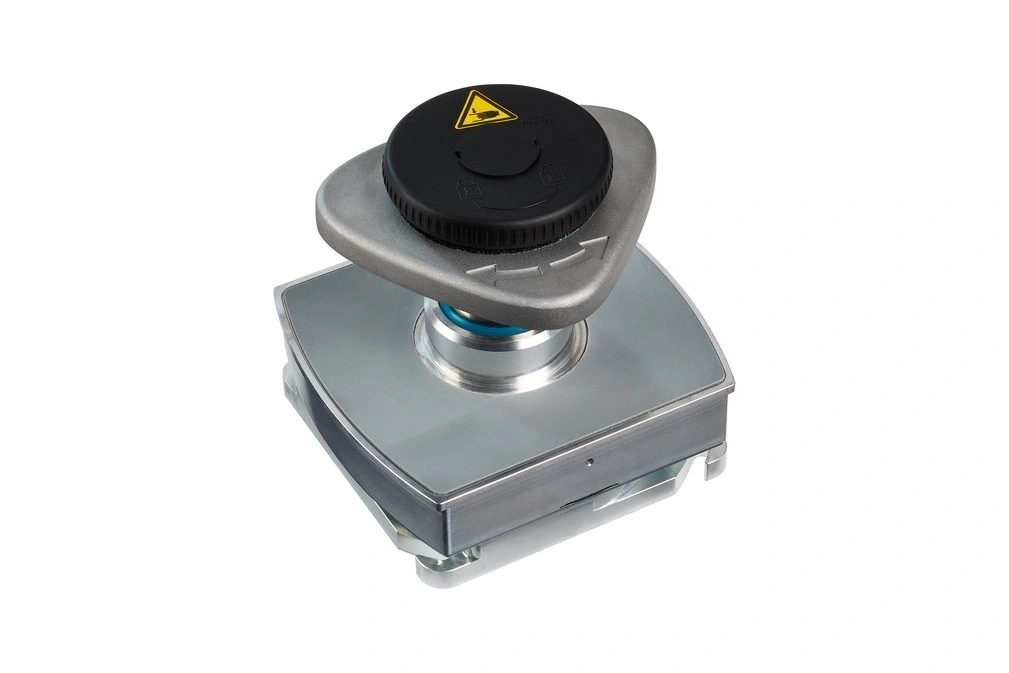

Mechanical Clamps VCMC-B-QUICK

Description

• Mechanical clamping system for CNC machining centers from Biesse with console tables with ATS and EPS suction cup mountings

• Particularly suitable for narrow and curved workpieces such as frame parts and window profiles

• Tool-free adjustment of the clamping height to the workpiece within seconds; extension of the clamping range possible through extension

• Clamping of the workpiece by activating the vacuum at the machine table

Note - Biesse
Biesse is a registered and protected trademark. The articles listed here are products of J. Schmalz GmbH that have been designed to fit CNC machining centers from Biesse.

Product Highlights

• Triangular clamping disc with tool-free quick adjustment enables shortest set-up times

• Clamping force of 700 N ensures safe clamping even with narrow workpieces

• No additional medium required, as the clamp can be activated via operating vacuum of the CNC machining centre

• Special friction materials on the clamping disc and clamping surface ensure a secure hold even with high machining forces

• Can be used for a wide range of workpieces thanks to its very large clamping range
