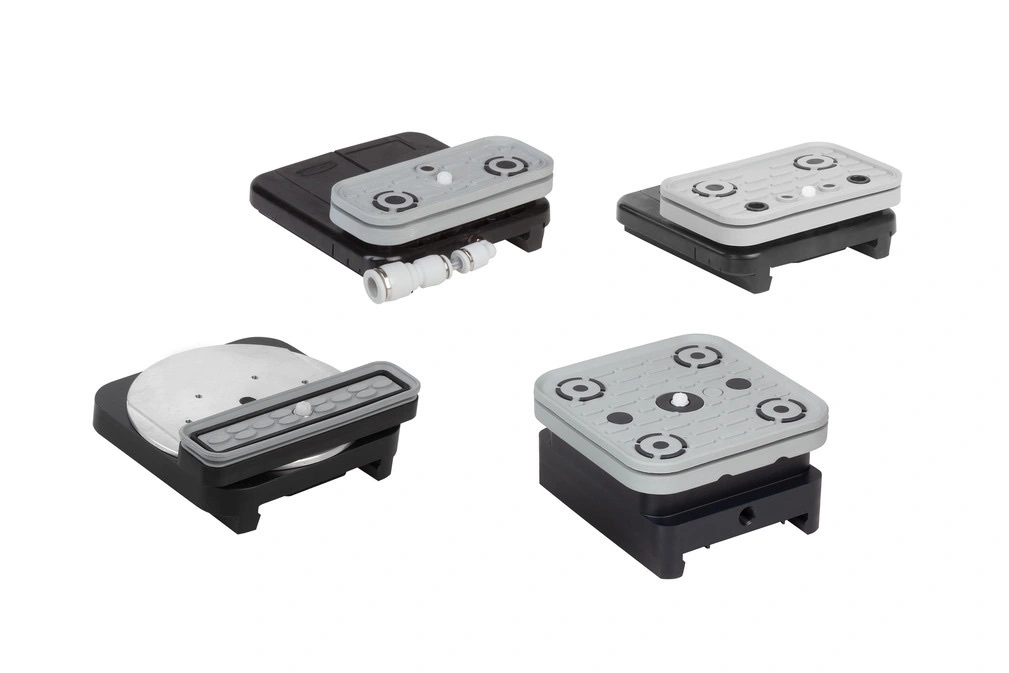

Vacuum Blocks VCBL-S1

Description

• Hose-free Schmalz clamping system for console tables from SCM / Morbidelli, fully compatible with original equipment

• The vacuum blocks are mechanically pre-fixed via the console

• The integrated touch valve allows unused vacuum blocks to remain on the machine table

• TV system from SCM = S1 system from Schmalz (width of console 72.5 mm)

• TVS system from SCM = S1 system from Schmalz with hose connection (width of console 72.5 mm)

Note - SCM/Morbidelli
SCM / Morbidelli is a registered and protected trademark. The articles listed here are products of J. Schmalz GmbH that have been designed to fit CNC machining centers from SCM / Morbidelli.

Product Highlights

• Highest holding forces in wood applications thanks to optimized seals and friction pads

• Highest dimensional accuracy for more precision in the production process

• Wide range of products offers maximum flexibility and enables short set-up times

• Suction plates can be replaced quickly, easily and economically without tools
