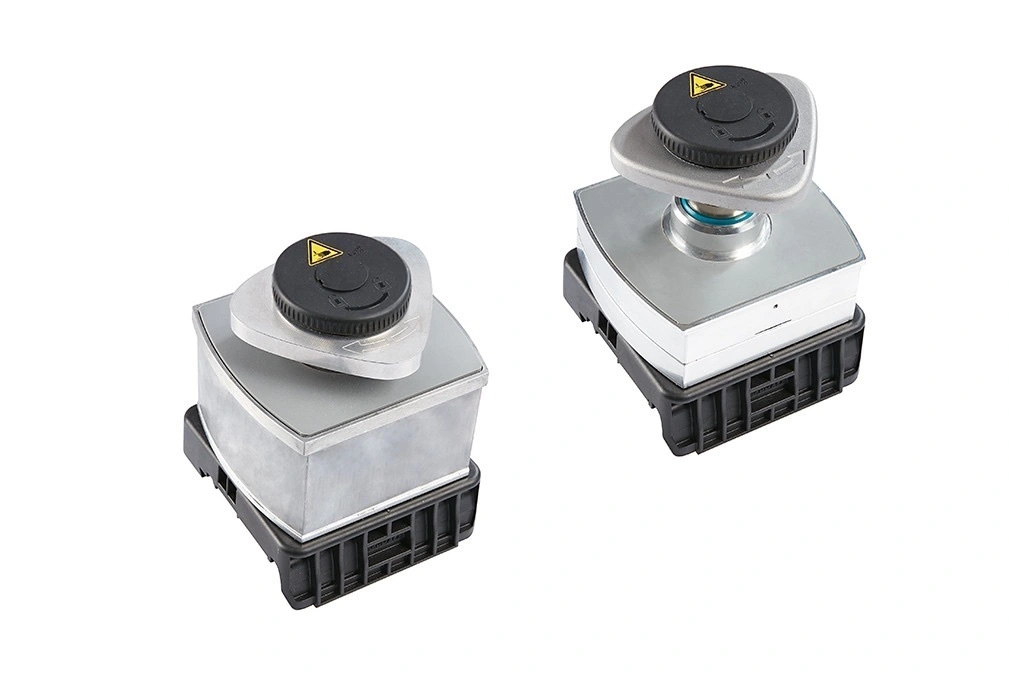

Mechanical Clamps VCMC-S6-QUICK

Description

• Mechanical clamping system for CNC machining centers from SCM / Morbidelli with TV console tables

• Particularly suitable for narrow and curved workpieces such as frame parts and window profiles

• Set-up is efficient, safe and tool-free; the clamp is mechanically pre-fixed

• Tool-free adjustment of the clamping height to the workpiece within seconds; extension of the clamping range possible through extension

• Clamping of the workpiece by activating the vacuum on the machine table

Note - SCM/Morbidelli
SCM / Morbidelli is a registered and protected trademark. The articles listed here are products of J. Schmalz GmbH that have been designed to fit CNC machining centers from SCM / Morbidelli.

Product Highlights

• Triangular clamping disc with tool-free quick adjustment enables shortest set-up times

• Holds even narrow workpieces securely with clamping forces of up to 700 N

• No additional medium required, as the clamp can be activated via operating vacuum of the CNC machining centre

• Special friction materials on the clamping disc and clamping surface ensure a secure hold even with high machining forces
