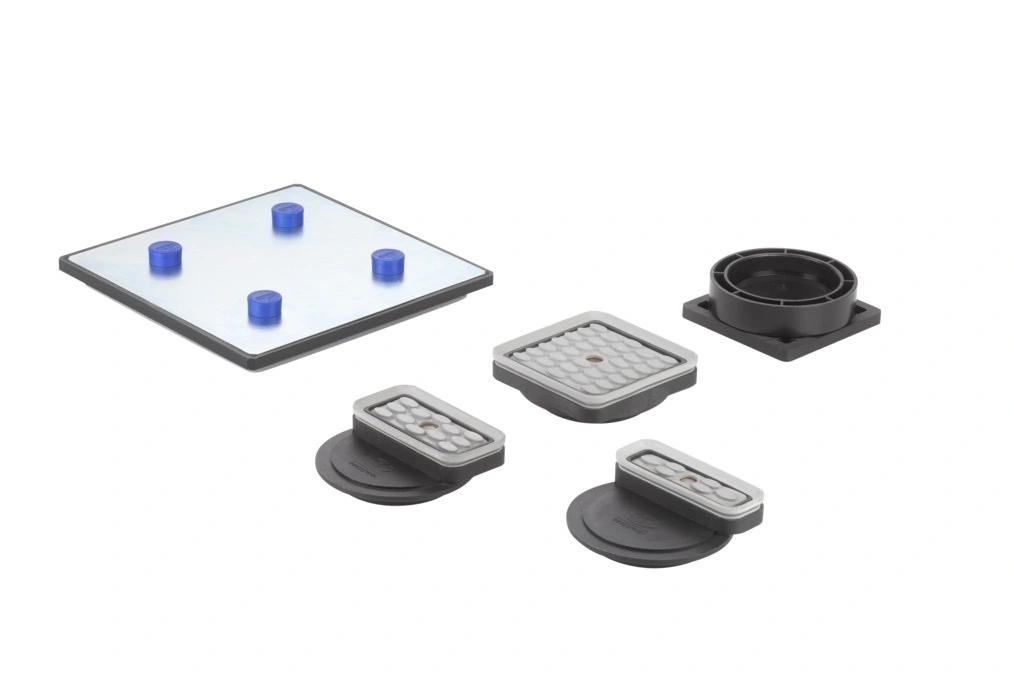

Adapter-Plates ISAP-R

Description

• Vacuum clamping system for CNC machining centers with grid tables

• The Adapter-Plates are inserted directly into the grid on the machine table and are suitable for mixed use with standard vacuum blocks

• The Adapter-Plates can be flexibly equipped with up to four additional Mono-Bases ISMB and suction cups ISCUP

• Particularly suitable for narrow and curved workpieces with small suction surfaces and delicate molds

• Overall height can be adapted with the spacer rings

• Suitable for all common grid geometries (slot width 5 mm to 7 mm, slot depth 5 mm to 7 mm)

Product Highlights

• Ideal for narrow and curved workpieces, as plates and vacuum blocks can be flexibly combined

• Freely positionable suction cups and Mono-Bases allow almost any clamping layout

• Mixed operation with standard vacuum blocks possible for even more flexibility and short set-up times

• Accessories and spare parts can be replaced quickly, easily and cost-effectively without tools
