Adapter-Plates AP-R

Description

• Specially developed Adapter-Plate for using vacuum blocks VCBL-B on grid tables

• The Adapter-Plate is placed directly on the grid of the nesting machine table

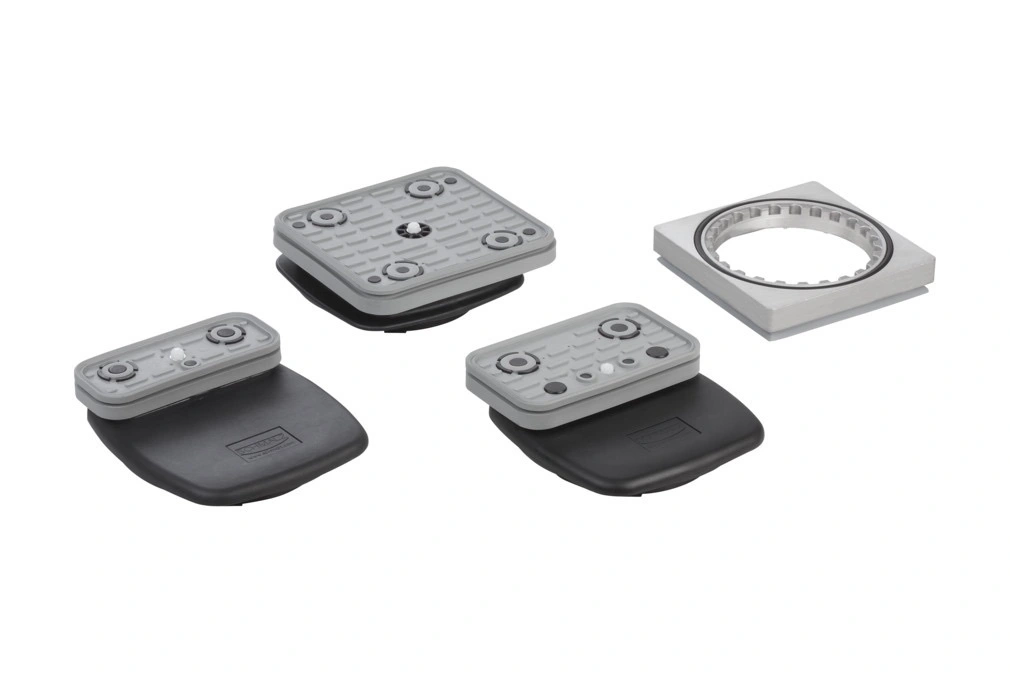

• Vacuum blocks VCBL-B can be placed into the suction cup mount of the Adapter-
Plate at any orientation in 15° steps to align the suction area as desired

• The vacuum blocks are available in three different heights (29, 48 and 74 mm) and four different suction areas as an accessorie

Product Highlights

• Modular system consisting of Adapter-Plate and suction cups offers maximum flexibility in positioning the suction cups

• Vacuum blocks of different heights allow several working heights and, depending on the machine, also 5-axis machining

• Unused vacuum blocks VCBL-B can remain on the machine table thanks to the touch valve
