Mechanical Clamps VCMC-R-QUICK

Description

• Mechanical clamping system for CNC machining centers with vacuum grid table, suitable for all common grid geometries

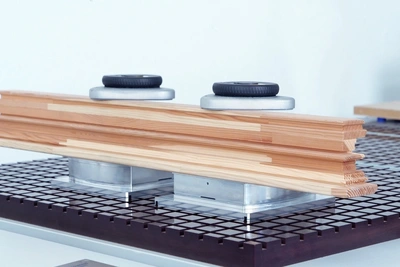

• Particularly suitable for narrow and curved workpieces such as frame parts and window profiles

• For setup, the clamp is positioned in the grid with mounting brackets and the clamping height is adapted to the workpiece with the tool-free quick adjustment

• Fixing the clamp and clamping the workpiece by activating the vacuum on the machine table

Product Highlights

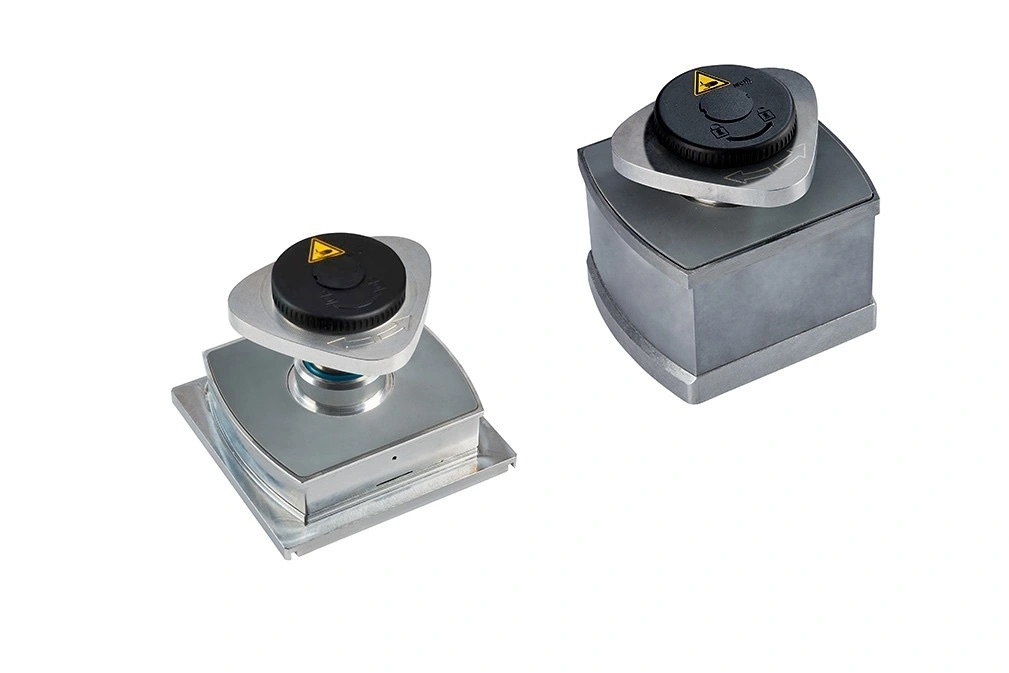

• Triangular clamping disc with tool-free quick adjustment enables shortest setup times

• Clamping forces up to 700 N guarantee high holding forces even on narrow workpieces

• No additional medium required on the machine, as the clamping device is activated by the operating vacuum of the CNC machining center

• Special friction materials on the clamping plate and clamping surface ensure that the workpiece is held securely even with high machining forces
