Vacuum Blocks VCBL-N

Description

Clamp workpieces in nesting and grid table applications with maximum flexibility.

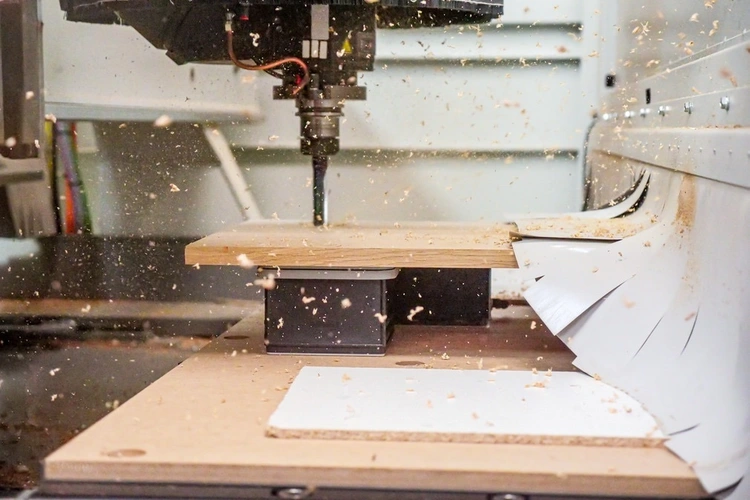

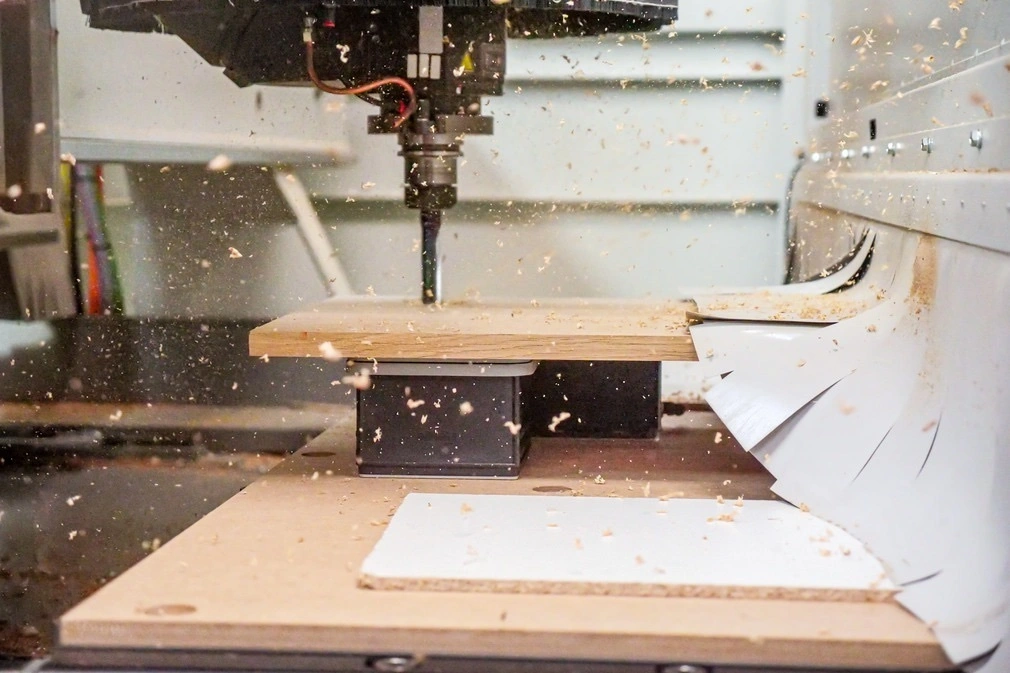

With the VCBL-N vacuum block, you can clamp workpieces of all kinds, from rough or textured surfaces to solid wood. With the extensive portfolio of dimensions and clamping heights, you can solve any clamping task. The suction plate can be changed quickly and without tools and is also equipped with a membrane. This protects the workpiece from direct contact with the standard touch valve and at the same time from soiling. The optional lifting system facilitates the loading and unloading of large, bulky workpieces and at the same time protects the sealing edge of the suction plate. The additional hose connection, which is included in delivery, enables a direct increase in performance for particularly demanding applications. The nesting insert, which is also included in delivery, can be removed so that the vacuum block can also be used on the grid table. This makes the VCBL-N a 2-in-1 all-rounder. Tedious switching of the vacuum block between grid and nesting applications is now a thing of the past.

Application

• Vacuum clamping system for CNC machining centers with nesting and grid table

• Suitable for simple 3-axis machining and complex 5-axis machining thanks to a wide range of working heights from 32 to 132 mm

• Specially developed for use on grid tables by removing the nesting insert

• Suitable for all common grid geometries (grid dimensions 30 and 40 mm, groove widths 6 to 7.5 mm, groove depths 6 to 7 mm)
