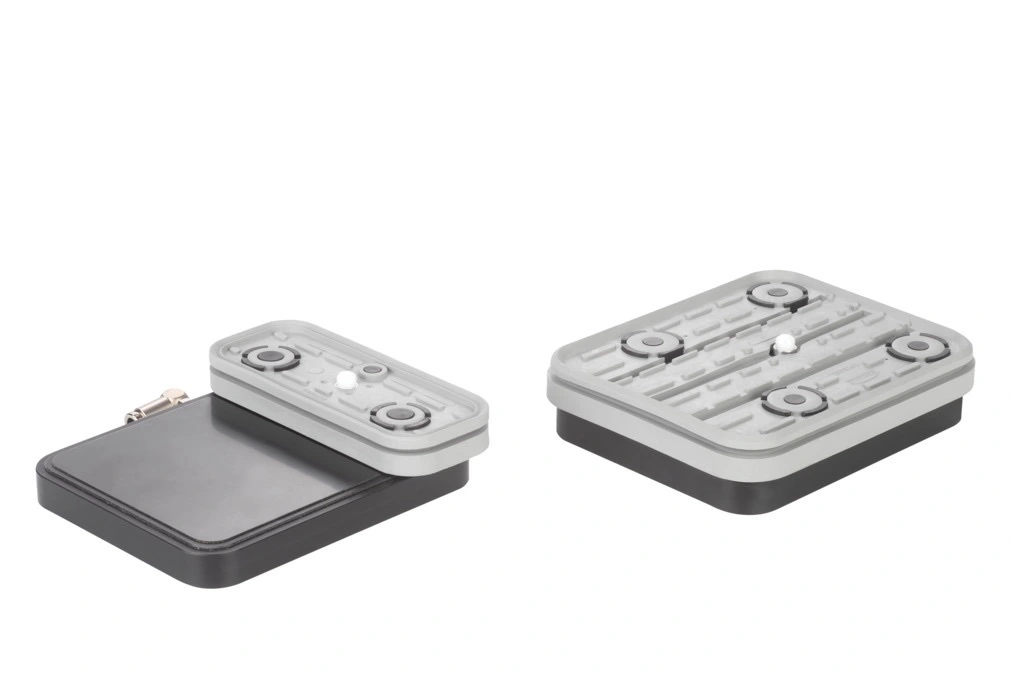

Vacuum Blocks VCBL-G-K1

Description

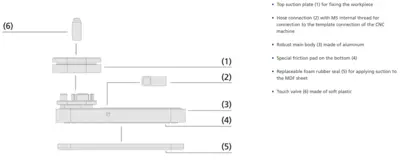

• Vacuum blocks for use directly on the MDF wear plate of a nesting machine table

• The vacuum blocks are supplied with vacuum via hoses that are connected to the template connection of the machine

• The low working height of 30 mm makes it ideal for 3-axis machining centers with low Z-values

• All vacuum blocks are equipped with a touch valve for activating the vacuum only after contacting the workpiece to preserve the workpiece surface

Product Highlights

• Hose connection option allows easy connection to the vacuum supply

• Easy replacement of the suction plate in case of wear

• Friction pad milled to size on the underside optimized for smooth surfaces

• Smooth-running plastic touch valve allows damage-free fixation of the workpiece
