Adapter-Plates AP-G

Description

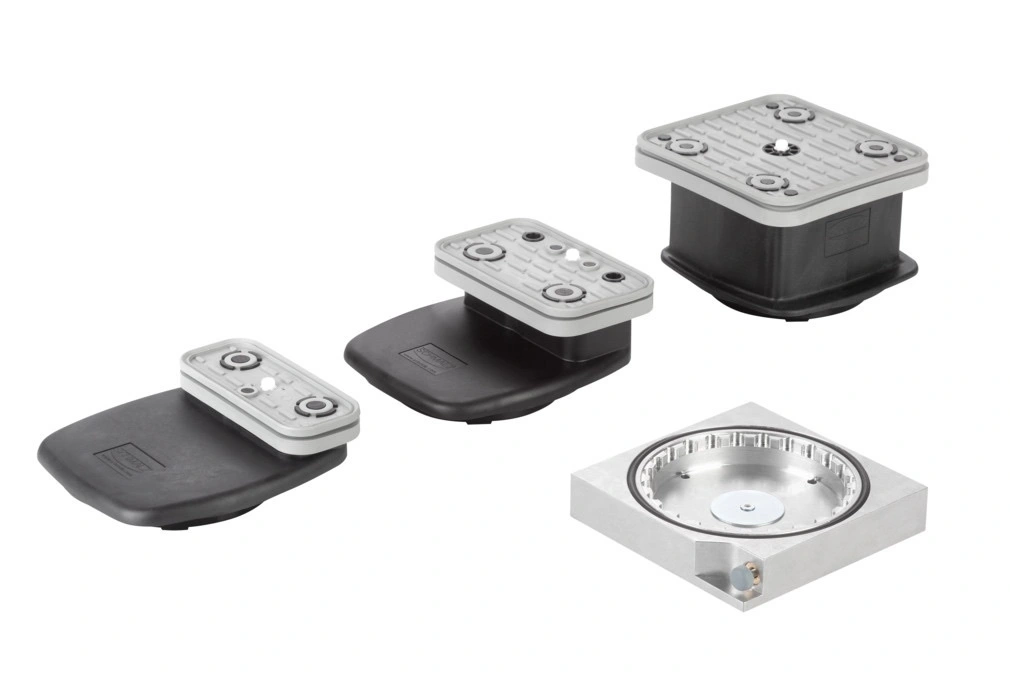

• Adapter-Plate for using vacuum blocks VCBL-B on nesting machine tables

• The Adapter-Plate is supplied with vacuum via a hose that is connected to the template connection of the machine

• Vacuum blocks VCBL-B are placed into the suction cup mount of the Adapter-
Plate at any orientation in 15° steps to orient the suction area as desired

• The vacuum blocks are available in three different heights (29, 48 and 74 mm) and four different suction areas

Product Highlights

• Modular system of Adapter-Plate and suction cups offers maximum flexibility with short set-up times

• Vacuum blocks of different heights allow several working heights and, depending on the machine, also 5-axis machining

• Friction pad milled to size on the underside optimized for smooth surfaces

• Push-button for manual ventilation of the underside allows quick positioning without switching off the vacuum

• Unused vacuum blocks VCBL-B can remain on the machine table thanks to the touch valve
