Vacuum Tube Lifters JumboErgo 300
Have one to sell?
ConditionNew
New
The twist grip on the JumboErgo is designed to operate like a motorcycle throttle. Large and heavy loads such as wooden boards, cardboard boxes and solar panels can be moved gently and precisely. The length of the operator handle can be varied, which allows the user to always maintain a safe distance from the load.
Application
• Fast and frequent lifting and moving of flat workpieces up to 300 kg

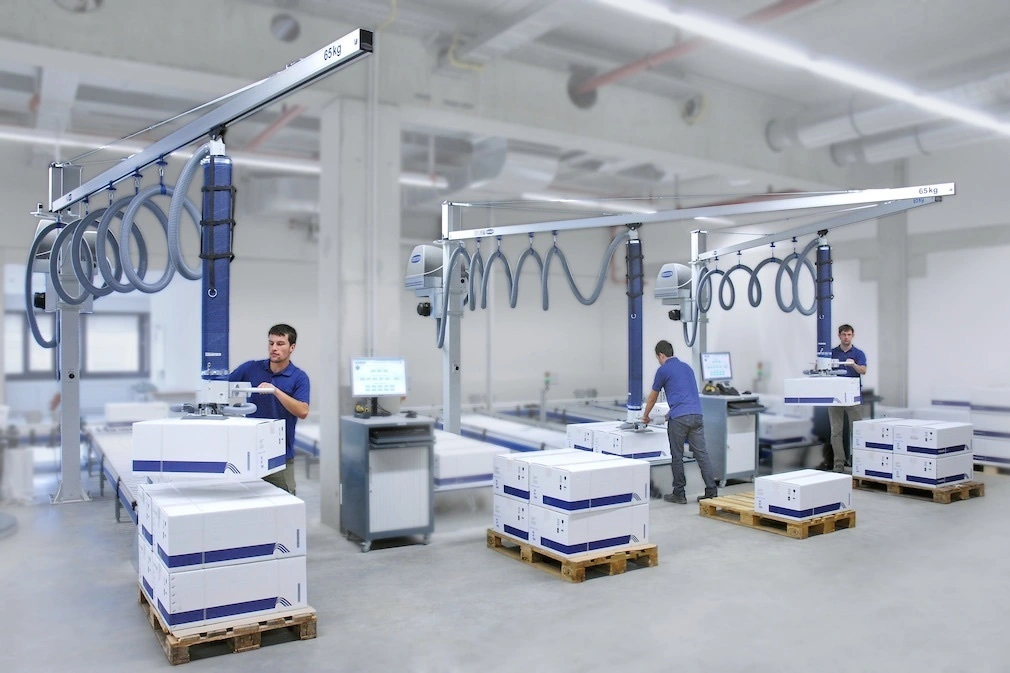

• Responsive and precise handling of differently sized workpieces such as cardboard boxes, wooden boards or solar panels in internal logistics processes

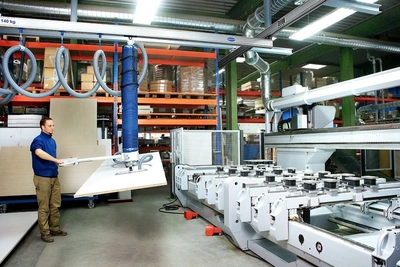

• Loading and unloading of CNC machining centers
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
The vacuum tube lifters JumboErgo and JumboSprint can be configured specifically based on the requirements of each individual application due to their modular design. The technical data varies depending on the configuration and on the vacuum gripper chosen.
The following technical data are standard values.
Workpiece format* Min [mm]
300x200
300x200
Workpiece format* Max [mm]
4,000x2,000
4,000x2,000
Operator handle length L [mm]
350-1,000
350-1,000
Max. lifting speed [m/min]
60
60
Max. lifting stroke Z [mm]
1,700
2,100
Height H** [mm]
2,850
3,400
Max. lift capacity [kg]
Horizontal - 300
90° swivel -
Ø Lift tube D [mm]
305
A lift capacity of 140 kg and higher applies: lifting stroke Z +160 mm, height H +250 mm
*Depends on the vacuum gripper chosen
**Vacuum gripper not included (to
