VacuMaster Basic 750
Have one to sell?
ConditionNew
New
The VacuMaster Basic’s versatile standard equipment makes it indispensable for many applications. In addition, the VacuMaster Comfort offers an operator handle that brings together all of the device’s controls as well as a controlled vacuum generator for reducing energy consumption.
Application
• Handling of large and flat, mostly airtight loads and workpieces

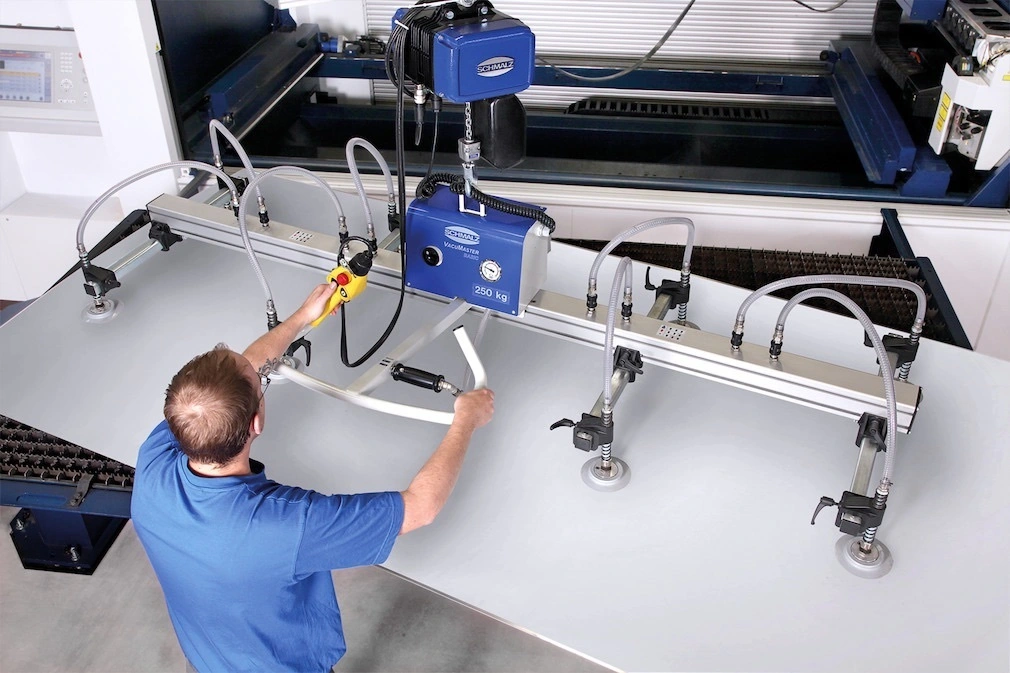

• Loading and unloading of CNC laser cutting machines with metal sheets
• Loading and unloading of CNC machining centers with airtight wooden boards or plastic sheets
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Technical Data Vacuum Lifting Device VacuMaster Basic: Horizontal Handling
Type* Max. lift capacity [kg]
Basic 750
Workpiece format [mm]
3,000 x 1,500
4,000 x 2,000
Dimensions LL x LQ [mm]
2,400 x 1,150
3,200 x 1,500
Overall height H [mm]
635
635
Suction plates [no.]**
6
8
Sucdtion Plates Ds [mm]
250
210
Weight [kg]
91
115
