VacuMaster Eco 250
Have one to sell?
ConditionNew
New

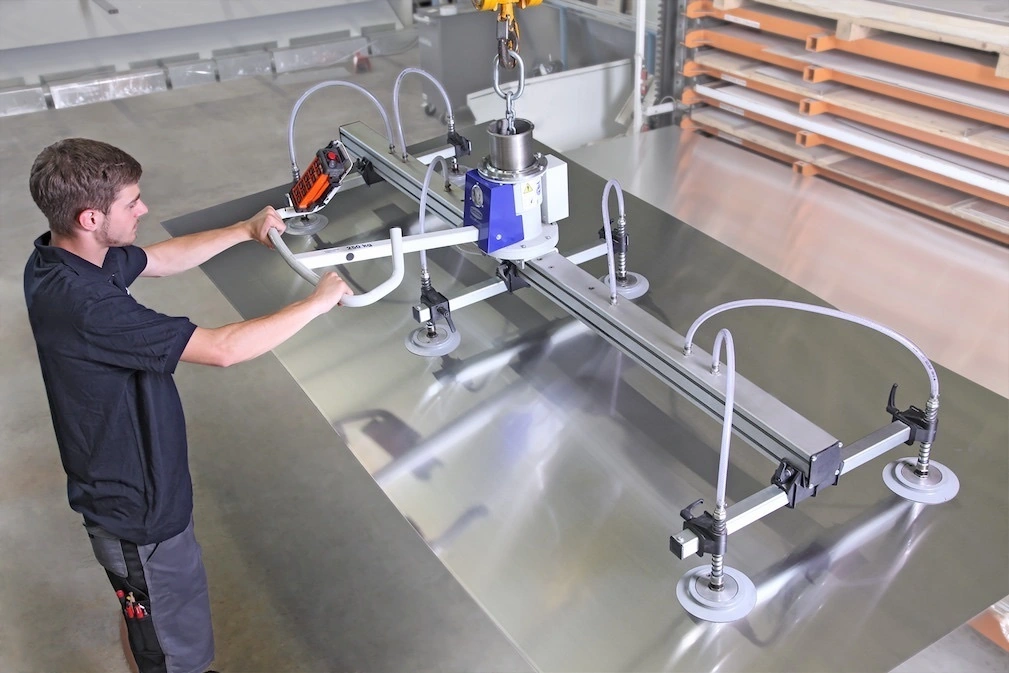

Horizontal handling of smooth and airtight workpieces
Application
• Horizontal handling of smooth and airtight workpieces up to 1,000 kg without an external energy source
• Handling of metal sheets, metal plates, barrels and stone plates
• Loading and unloading of CNC laser cutting machines with metal sheets
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Max. lift capacity* [kg]
250
Min. workpiece format [mm]
360 x 360
Max. workpiece format [mm]
3,000 x 2,000
Number of suction plates
1, 2, 4, 6, 8
Length L [mm]
800 - 2,400
Width B [mm]
400 - 1,500
Overall height H [mm]
450 - 825
Operator handle L1 [mm]
400 - 1,100
Weight [kg]
33 - 59
