VacuMaster Window Comfort 200 EL
Have one to sell?
ConditionNew
New

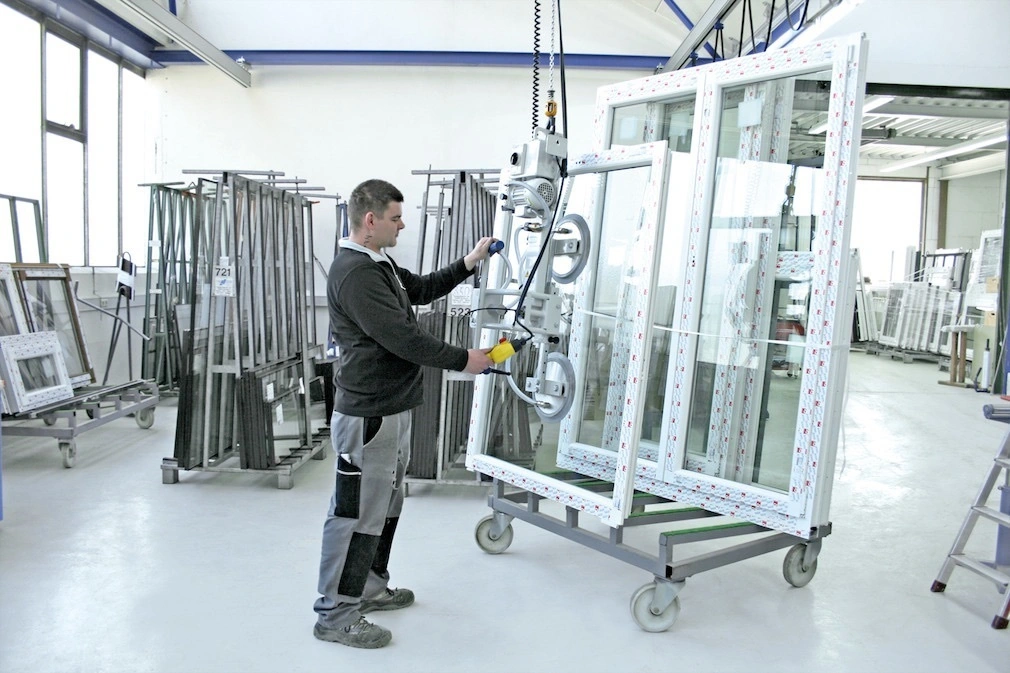

Vertical handling of windows, glass sheets and glass components
Application
• Vertical handling of windows, glass sheets and glass components up to 300 kg
• Workpieces can be rotated by 90° (workpiece diagonal during rotation max. 3,000 mm)
• For windows with sash parts or frames protruding up to 45 mm
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Rotation mechanism
Electric, right
Max. lift capacity [kg]
200
Number of suction plates
2
∅ suction plates [mm]
305
Length L [mm]
630 - 930
Width B [mm]
630
Overall height H [mm]
940
Total depth L1 [mm]
570
Weight [kg]
71
