VacuMaster Multi 400/300 90°
Have one to sell?
ConditionNew
New

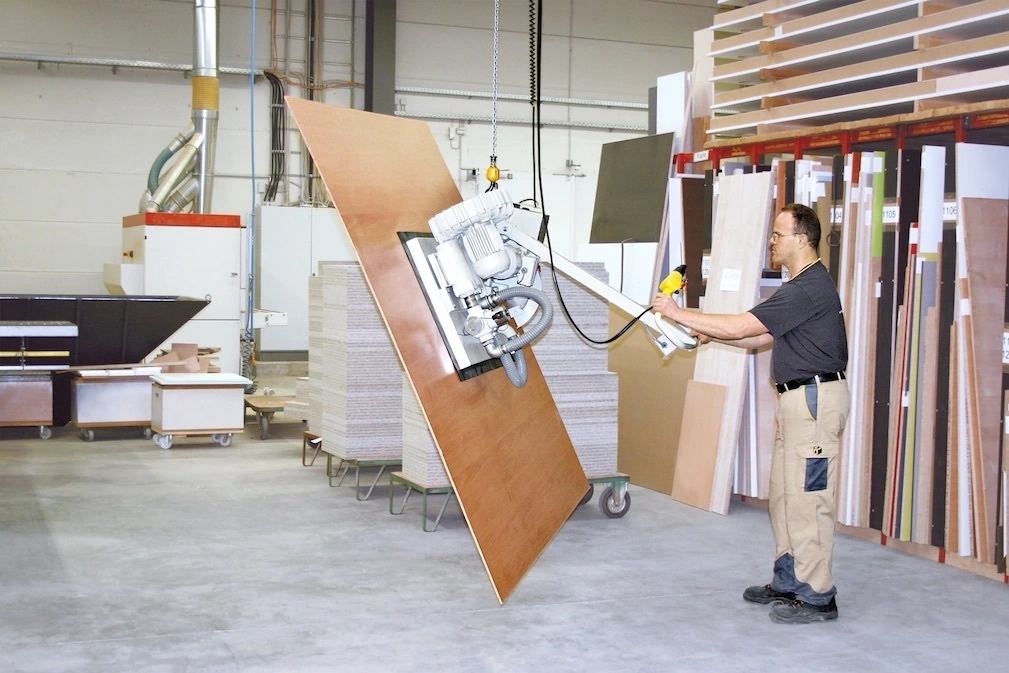

Handling large, heavy wooden boards, either airtight or porous
Application
• Handling of large and heavy, airtight or porous wooden boards up to 400 kg horizontal
• Ideal for rough and coated MDF, OSB and particle boards
• Also for gypsum fiber and gypsum plaster board as well as plastic sheets
• Swiveling of workpieces up to 300 kg by up to 90° (optional)
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Max. lift capacity horizontal [kg]
400
Max. lift capacity vertical [kg]
300
300
Workpiece format min. [mm]
1,400 x 1,100
2,200 x 1,000
Workpiece format max. [mm]
5.600 x 2,100
5,600 x 2,100
No. suction plates
2
8
Main beam length L [mm]
2,000
2,500
Overall height H [mm]
620
630
Operator handle L1 [mm]
1,050
1,050
Weight [kg]
159
189
