VacuMaster Coil 500 90°
Have one to sell?
ConditionNew
New
Handling coils and slit strip
Application

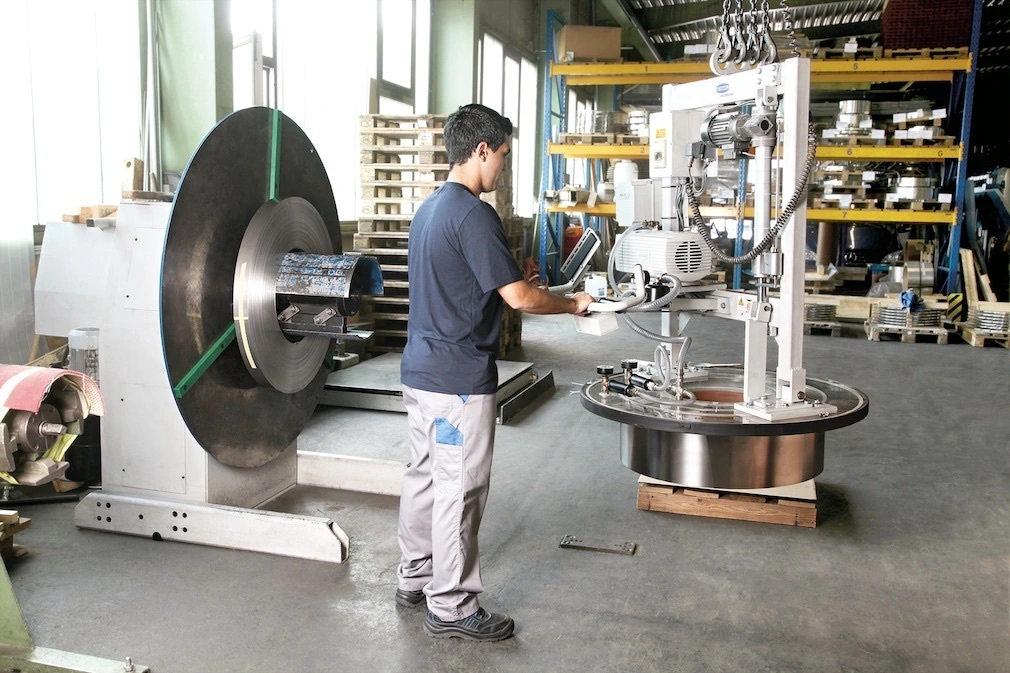

• Handling of coils and slit strips up to 1,000 kg, e.g. for positioning on a decoiler mandrel
• Suitable for coils made from thin and ultra-thin sheet metal, steel and stainless steel, metal foils, tinplate and aluminum
• Maximum slit-coil thickness of 3.0 mm (aluminum) or 1.5 mm (steel)
• Continuous swiveling up to 90°
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Max. lift capacity [kg]
500
Min. workpiece Ø [mm]
600
Max. workpiece Ø [mm]
1,200
Number of suction clamps
3
Ø suction plate inner D1 [mm]
410
Ø suction plate outer D2 [mm]
850
Overall height H [mm]
1,300
Operator handle L1 [mm]
660
Weight [kg]
140
