Safe and Ergonomic Handling of Glass Outdoors up to 450 kg

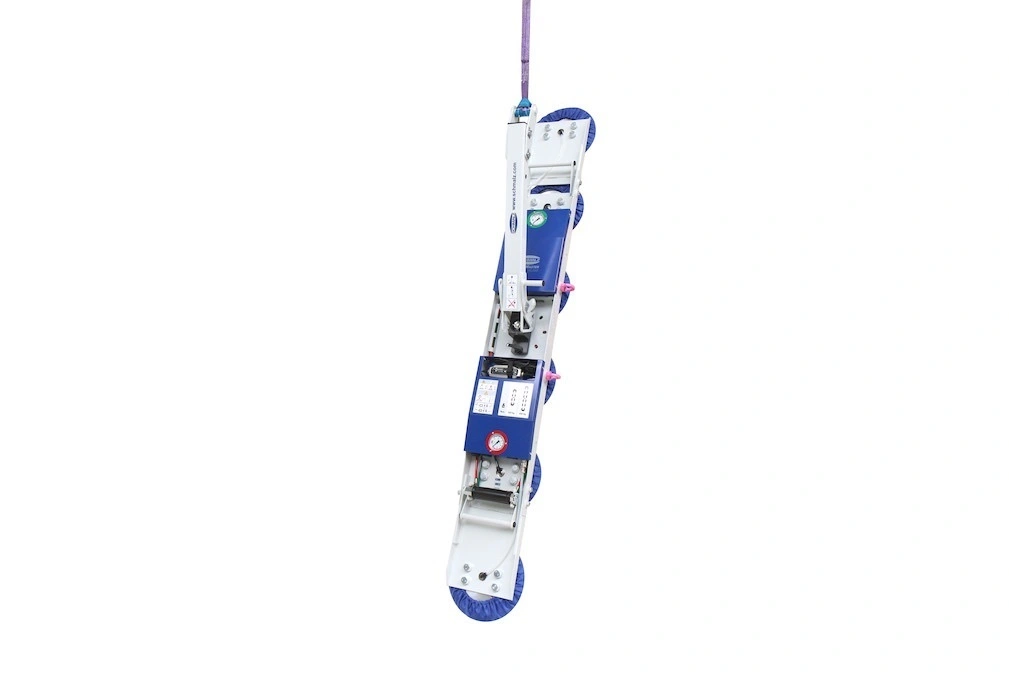

The vacuum lifting device VacuMaster Glass 450 from Schmalz is ideal for a safe handling of glass workpieces in outdoor areas. Attached to the site crane, it permits effortless lifting of loads up to 450 kg horizontally and vertically. Workpieces can also be swiveled manually by 90° and rotated by 360° with three locking points per right angle. Thereby the workpieces can be aligned perfectly and installed in the facade. Due to its modular design, the VacuMaster Glass can be easily adapted to the dimensions of the workpieces.
The VacuMaster Glass 450 can be operated without being attached to the electrical power supply. A LED indicator shows the charge status of the 12 V rechargeable battery, which can be replaced. In addition, the controlled vacuum pump assures that the VacuMaster Glass remains ready for operation up to eight hours.
Application
• Handling of windows, glass sheets and facade elements up to 450 kg in outdoor area
• Handling of windows with muntins and mullions using optional suction cup spacers (with reduced lift capacity)
• The optimized weight of the VacuMaster Glass is between 48 kg and 58 kg
• Specially designed for outdoor use with UV and ozone resistant suction plates with a protective cover
The VacuMaster Glass 450 is designed for loads up to 450 kg (horizontal and vertical). The VacuMaster Glass 450 weights 47 – 57 kg.
Power supply: Battery 12 V/4 A
Capacity of battery: 7 Ah
Operating temperature: 0 °C to 40 °C
Max. operating time: 8 h
