VacuMaster Glass 600
Have one to sell?
ConditionNew
New
Safe and Ergonomic Handling of Glass Outdoors up to 600 kg

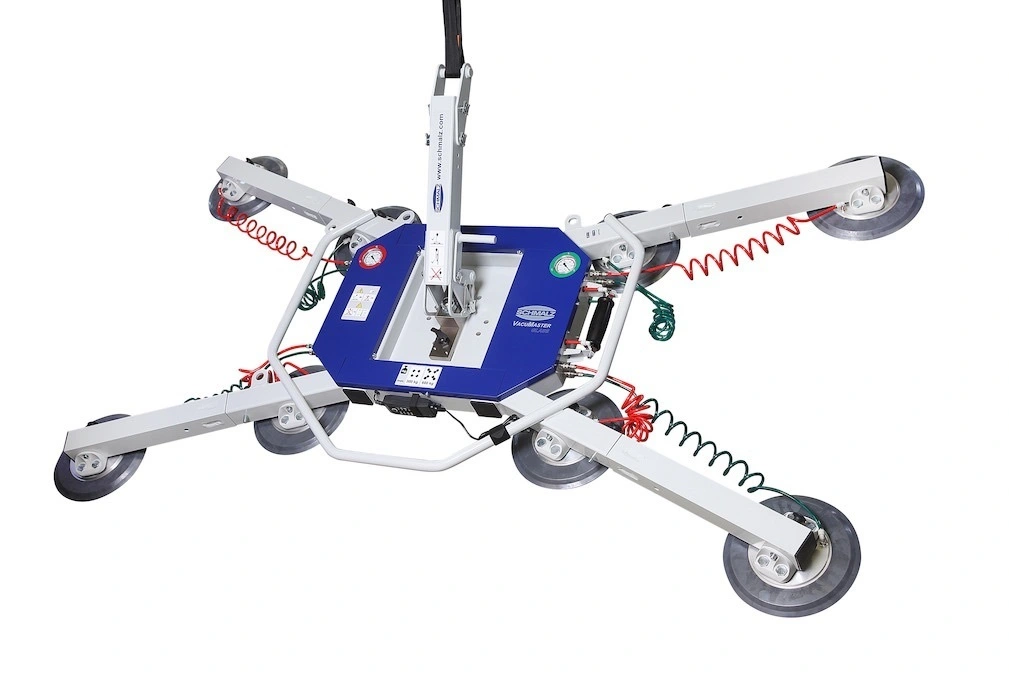

The vacuum lifting device VacuMaster Glass 600 from Schmalz is ideal for a safe handling of glass workpieces in outdoor areas. Attached to the site crane, it permits effortless lifting of loads up to 600 kg either in a horizontal or vertical position. Workpieces can also be swiveled manually by 90° and rotated by 360° (in 45° increments). Thereby the workpieces can be aligned perfectly and installed in the facade. Due to its modular design, the VacuMaster Glass can be easily adapted to the dimensions of the workpieces.
The VacuMaster Glass 600 can be operated without being attached to the electrical power supply. A LED indicator shows the charge status of the 12 V rechargeable battery, which can be replaced. In addition, the controlled vacuum pump assures that the VacuMaster Glass remains ready for operation up to eight hours.
Application
• Handling of windows, glass sheets and facade elements up to 600 kg in outdoor area
• Handling of windows with muntins and mullions using optional suction cup spacers (with reduced lift capacity)
• The optimized weight of the VacuMaster Glass is between 66 kg and 86 kg
• Specially designed for outdoor use with UV and ozone resistant suction plates with a protective cover
The VacuMaster Glass 600 is designed for loads up to 600 kg (horizontal and vertical).The VacuMaster Glass 600 weights 66 – 86 kg. The lift capacity depends on the number of suction plates (75 kg/suction plate).
Power supply: Battery 12 V/4 A
Capacity of battery: 7 Ah
Operating temperature: 0 °C to 40 °C
Max. operating time: 8 h
