Horizontal Bore & Dowel Insertion Machine
Have one to sell?
ConditionNew
New

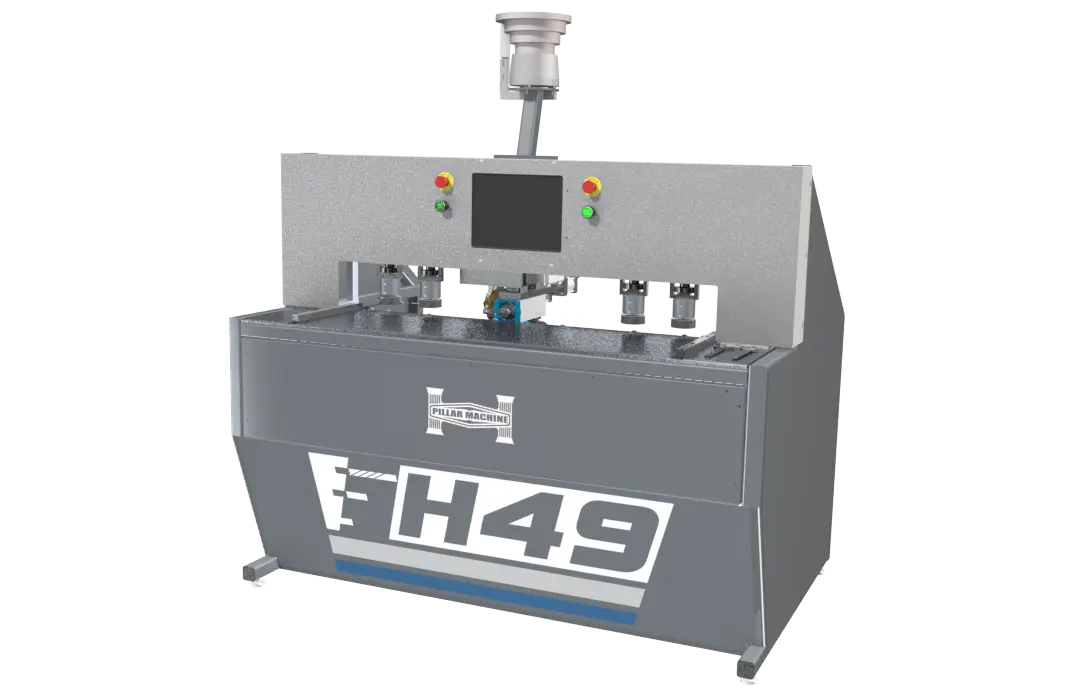

The H49 is a horizontal point to point bore and dowel insertion machining center.
It is designed to CNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water (for pre-glued dowels), and fire the dowel into the hole.
H49 Advantages:
• Elimination of complicated machine setup
• Quick, accurate assembly
• Gain production times on CNC routers and point to points by shifting boring and doweling to the H-49 software
Material Specification:
49″ maximum length capability
Unlimited Width Capability
1/2″ minimum to 1″ maximum thickness capability
Drives
X Axis – Rack and Pinion
Y & Z Axis – Manual by use of hand digital readout
Guides
X – Axis Guides: High precision square rail guides & bearings for all linear motions.
Y – Axis Guides: High precision square rail guides & bearings for all linear motions.
Z – Axis Guides: High Precision square rail guides & bearings for all linear motions.
Utilities
Electrical – 3 phase, 208 – 230 volt, 60 cycles, 20 amps
Compressed Air – 90 psi at 10 CFM
Dust collection port – 1 each 2.5″ port at 220 CFM
Dimensions
Width – 75″
Depth – 48″
Height – 75″
Dowel Bowl Height – 75″
Weight 1160 lbs.
