Horizontal Position Lock Dowel

Description

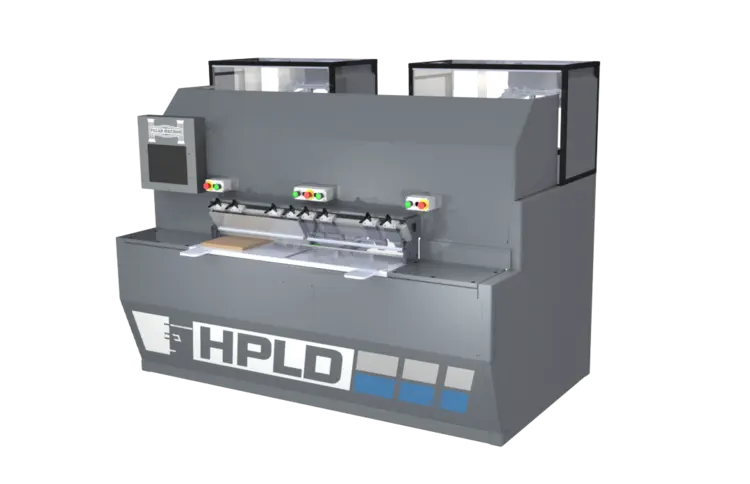

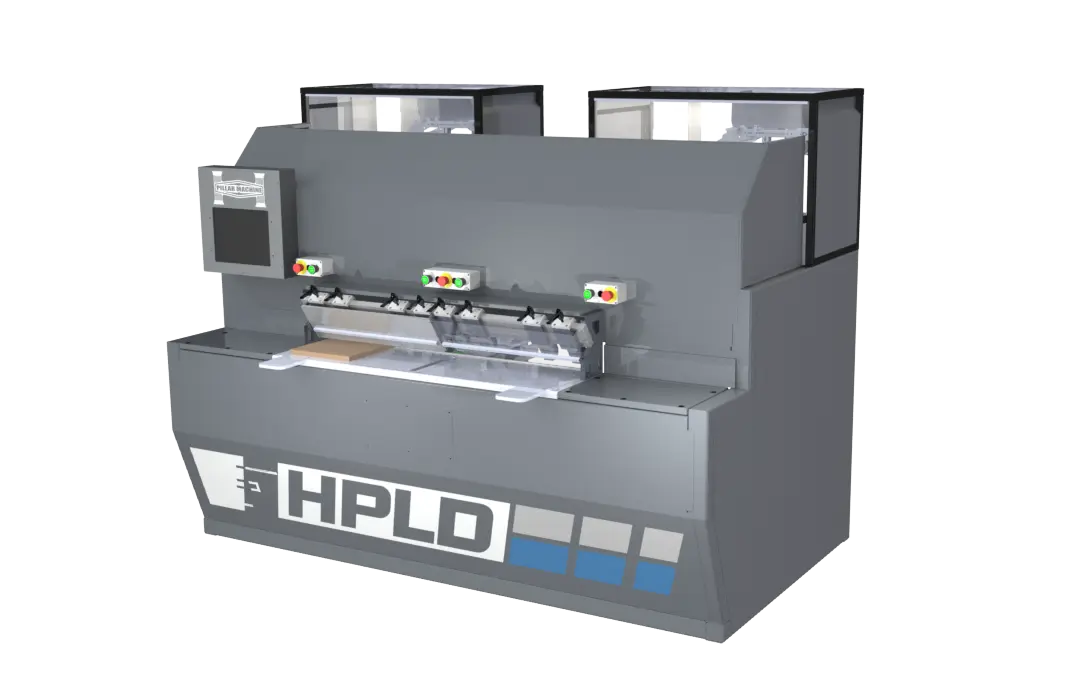

The HPLD is a horizontal point to point Lockdowel inserting machine and one of the finest line boring machines for cabinets available. This machine will insert H-clips, Channel Locks and Spring Pins with ease.Using CNC control, this machine positions the drilling spindle to bore holes and insert the Lockdowel hardware.

HPLD Advantages:

• Elimination of complicated machine setup
• No glue or water required for dowel insertion
• No clamping needed
• Faster, Stronger and easier assembly by using Lockdowel Eclips
• Gain production times on CNC routers and Point to Points by shifting boring and doweling to the HPLD.

Using the HPLD will allow you to produce three times as much product without needing more employees. There’s no need for glue or clamping with the HPLD and Lockdowel system. Lockdowels help reduce assembly time by 80% or more. Putting together cases, cabinets and furniture should take minutes, not hours. Cabinets built with EClips are SEFA 8 tested and passed. They are in compliance with AWI standards.

You also have the ability to link the HPLD through Cabinet Vision’s screen-to-machine software.

Standard Operation

A part is placed into the work zone referencing the back and side fences. The palm button is pressed and the clamps secure the part into place. The machining is now ready to begin in the work zone. There are two fixed zones and two pop up zones standard in the base model HPLD allowing for pendulum processing. While the one part is being machined, the other zone(s) can be loaded and queued for machining.
