Trim, Score, Saw
Have one to sell?
ConditionNew
New

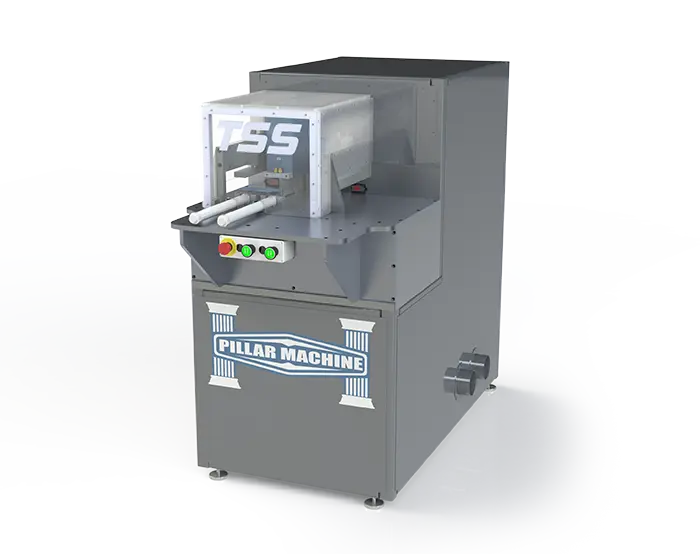

The saw features two counter rotating saws mounted above/below one another. The bottom saw is designed for pre-scoring parts prior to cut off to prevent tear out.
Standard Operation
TSS bottom spindle is designed to accept a 150 mm diameter scoring blade and is powered by a 1-1/2 HP motor. Spindle speed is 4700 RPM. The top spindle is designed for a 300 mm diameter saw blade and is powered by a 3 HP motor. Spindle speed is also 4700 RPM. Saw blade movement is horizontal and utilizes linear bearings and powered by a pneumatic cylinder with adjustable flow controls.
For safety, horizontally mounted pneumatic work clamps are installed on each side of the cut-off saw and are equipped with a proximity switch to release only after full saw blade retraction.
TSS Advantages:
• Tear-out FREE! Absolutely no tear-out on the cut boards
• Very safe operation for the user
• More accurate than a manual chop saw
• Frame is designed to sit flat or tilted at 10 degree angle
• TigerStop ready
Material Specifications:
Material Machining Capacities:
Width: Min: N/A”, Max: 12″
Thickness: Min: 1/4″, Max: 2″
Drives
Y Axis – Pneumatic cylinder
Guides
Y – Axis Guides: High precision Square rail guides & bearings for all
linear motions
Utilities
Electrical – 3 phase, 208 – 230 volt, 60 cycles, 20 amps
Compressed Air – 90 psi at 10 CFM
Dust collection port – 2 each 4″ port at 696 CFM total
Dimensions
Width – 38″
Depth – 72″
Height – 57″
Weight 1400 lbs. (approximate)
Specifications may be modified. Contact your Pillar Machine Sales Manager for details.
