Floor Notching Machine
Have one to sell?
ConditionNew
New

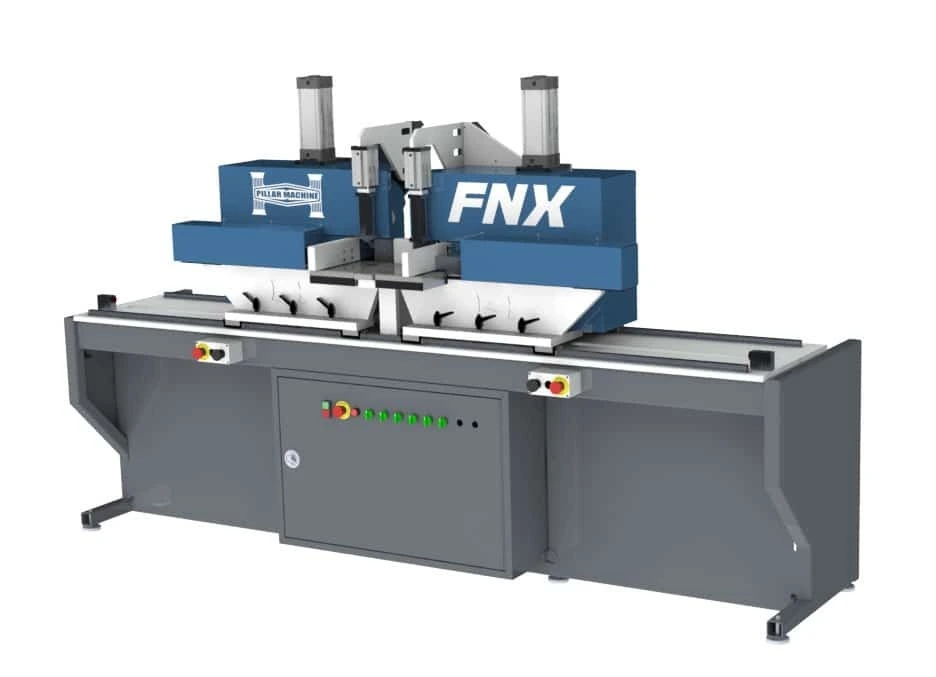

The FNX is designed to notch floor corners with a ¼” X 1″ notch each side.
Standard Operation
The machine will have two notching stations allowing you to notch both corners of the cabinet floors at one time.
Machine’s width will be manually adjusted and locked into place by placing an unnotched part into the machine and manually moving both notching heads in until they cannot move any closer together due to the width of the unnotched part. This will allow you to notch both corners at one time on up to 2.5″ thick amount of parts.
FNX Advantages:
• one
• two
• three
Material Specifications:
Depth 6″ Min N/A ” Max
Width 13″ Min 60″ Max
Thickness ½” Min 2.5″ Max
Haunch
Stacking capability up to 2.5″
At 1/2″ material thickness, stackable up to 5 parts high
3 HP haunching spindles for 2 haunching locations
Haunching depth mechanical adjusted from .200″ to .300″
Replaceable Chip breakers
Machine will be PLC controlled (unless CNC control option is selected
in options below)
Machine will be activated VIA palm switch button.
Notes:
1. Dust Collection provided from below, if possible
2. Square rail bearings
3. Weight 2100 lbs.
4. Length 96″
5. Depth 48″
6. Height 76″
7. Power 208-230 3 phase
Utilities
Electrical – 3 phase, 208/220 VAC
Compressed Air – 90-100 PSI @ 10-15 CFM
Dust collection ports – 1
Dust collection CFM total – N/A
