Used 2005 POWERMATIC TS29 Shaper | Shaper
Have one to sell?
ConditionUsed
1 available

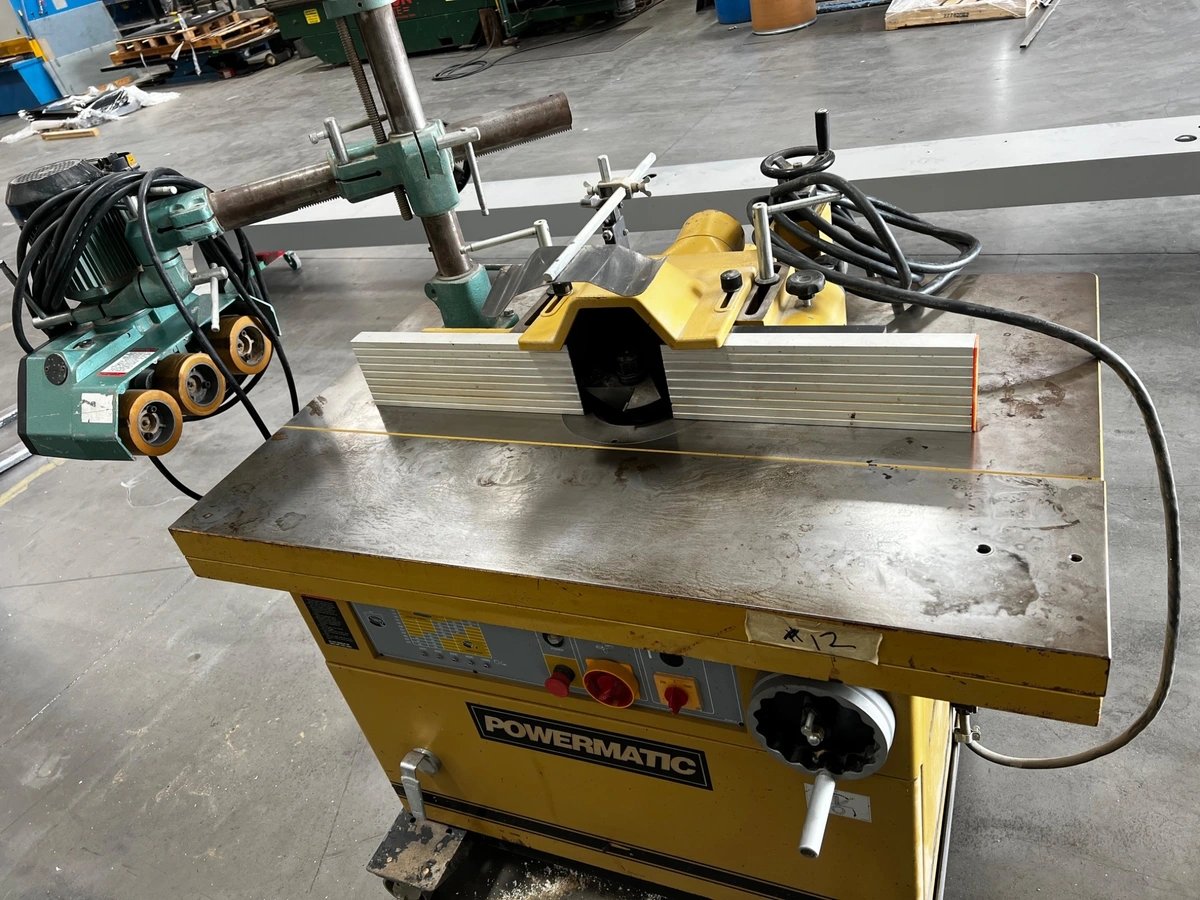

The TS29 Tilt/Slide Shaper is ready to tackle any job.The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.
Model Number TS29
Five spindle speeds in forward and reverse with lighted indicator
Full coverage guard with workpiece hold downs
Fully adjustable fence
Includes 3/4", 1" and 1-1/4" spindles
Large diameter multiple table inserts accommodate virtually any size cutter
Large table with built-in slider with room for stock feeder
Sliding table travels a full 49-1/4 inches
Tilting spindle for additional angles
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 5
Maximum Diameter Cutter Above Table (In.) 12
Maximum Diameter Cutter Below Table (In.) 9
Maximum Spindle Diameter (In.) 1-1/4
Model Number TS29

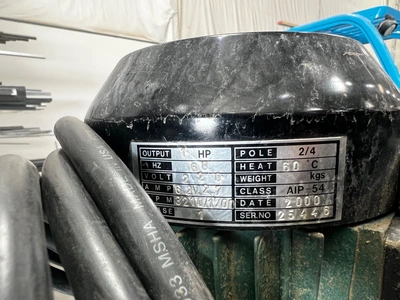

Motor Phase 3
Motor Power (HP) 7-1/2
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyer’s sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
