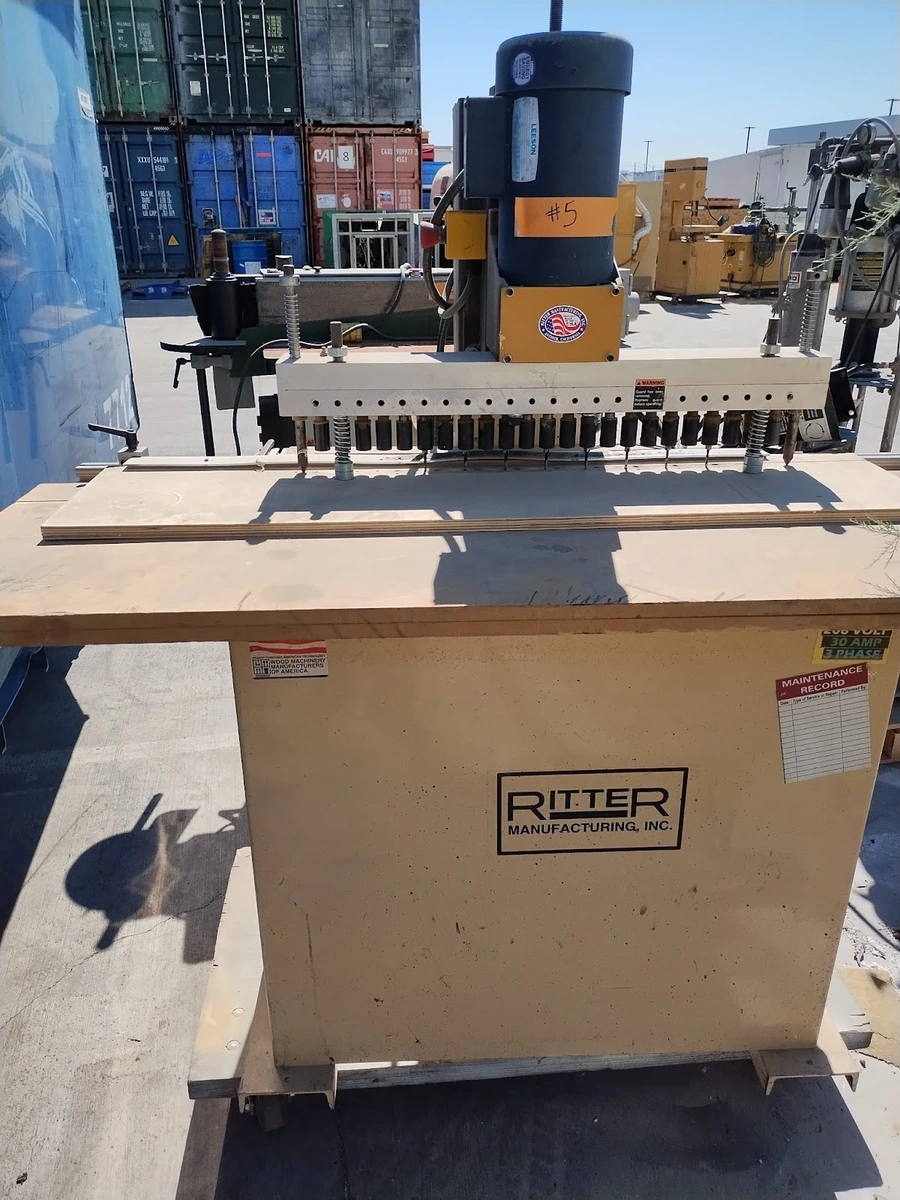

Used Ritter Machine R19 Line Boring Machine | Drilling Machine

Standard Features:

23-Spindle Gear Driven Drill Head on 32mm Centers
(12) Right Hand, (11) Left Hand
60" Back Fence with (4) Adjustable Material Stops
Right and Left Hand Work Stations
(2) Spring Loaded Index Pins
(2) Spring Operated Material Clamps
Adjustable Boring Depth
Pneumatic Driven Boring Cycle

Technical Data and Specifications:
Drive Motor: 3 HP
Spindle Centers: 32mm
Collet Size: 10mm
Throat Capacity: 12"
Maximum Material Thickness: 1.25"
Electrical: 230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A
Air: 2 CFM at 80 – 100 PSI
Work height: 38.25″
Footprint: 36″ x 60″
Table Area: 14″ x 48″

All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyer’s sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
