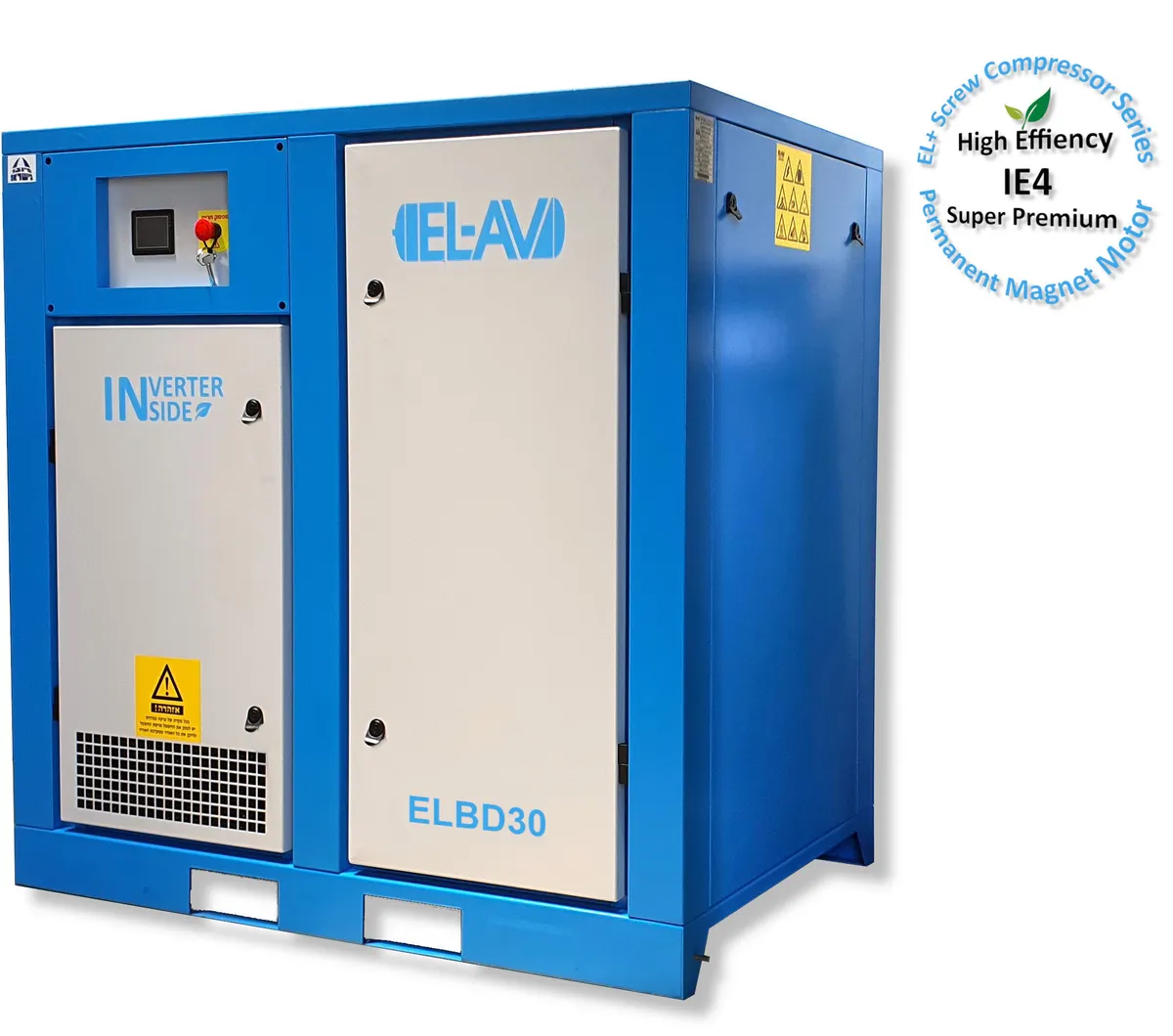

ELBD30INV Permanent Magnet VFD Screw Air Compressor
Have one to sell?
ConditionNew
1 available
New
The EL+ series compressors are engineered for efficiency, reliability, and versatility in demanding industrial environments. With advanced inverter technology, robust component design, and quiet operation, the ELBD30INV provides consistent airflow at varying loads while minimizing energy consumption. Ideal for manufacturers seeking a high-performance, low-maintenance compressed air solution.
Key Features:
• Inverter-driven variable speed control for optimal efficiency
• Quiet operation (65 dB(A)) – suitable for indoor installations
• Compact footprint for tight mechanical spaces
• Reliable performance in harsh environments
• Wide voltage range: 380–480V, 3-phase, 50/60Hz
Technical Specifications
• Model: ELBD30INV
• Motor Power: 30 HP / 22 kW
• Working Pressure Range: 100–145 psi (7–10 bar)
• Free Air Delivery (FAD): 25–147 SCFM (720–4200 l/min)
• Noise Level: 65 dB(A)
• Weight: 1080 lbs (490 kg)
• Compressed Air Connection: 1”
• Dimensions (L x W x H): 55.91” x 36.22” x 52.8”
• Power Supply: 380–480V / 3Ph / 50–60Hz
