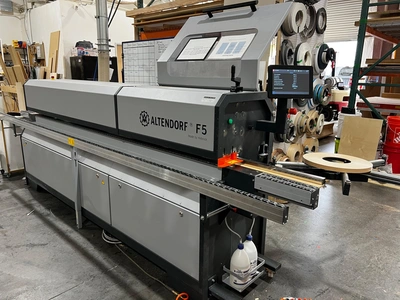

Used 2022 ALTENDORF / HEBROCK F 5 | Professional Edgebanders

✅ Machine Configuration
• Pre-Milling Unit – diamond cutterheads (up to 50 mm panel thickness)
• Glue Station – quick-change glue pot (<90 sec), supports EVA and PUR
• Second Glue Pot Included (for fast glue type or color changeover)
• End Trim Station – 12,000 RPM Single End Trim Saw
• Top & Bottom Trimming – combi tooling for flush, radius, and chamfer
• Corner Rounding Unit – 90° corners
• Radius Profile Scraper – dual-radius, pneumatically controlled
• Flat Scraper – with pneumatic disengagement
• Buffing Unit – dual polishing wheels

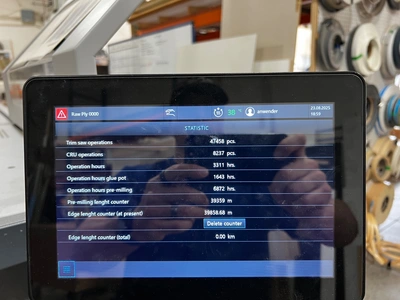

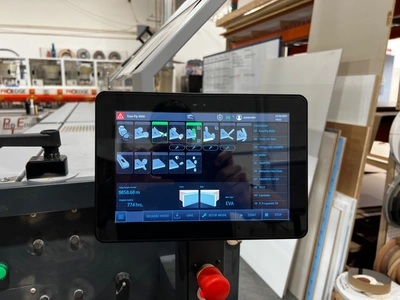

• 10” Touchscreen Control – with PLC interface
• LED Interior Lighting – clear visibility into work area
• 3 Spray Aggregates (release agent, protective agent, cleaning agent)

⸻

✅ Machine Highlights
• German-engineered and manufactured
• Heavy-duty transport chain
• Simple setup, quick station changeover
• Excellent finish quality on 1mm, 2mm, and thin tape
• Suitable for PUR or EVA production workflows
• Includes second glue pot for efficient operation

⸻

✅ Technical Specifications
• Max Edge Thickness: 3 mm
• Workpiece Thickness: 8 – 40 mm (5/16” – 1 ½”)
• Min Workpiece Length: 160 mm (6 3/8”)
• Min Workpiece Width: 80 mm (3 5/32”)
• Feed Speed: 7 m/min (22 fpm)
• Startup Time: Approx. 5 minutes

Electrical & Air Requirements
• Voltage: 220V, 3-phase, 60 Hz
• Total Power: 7.4 kW (10 HP)
• Full Load Amps: Approx. 30A
• Air Pressure: 7 bar (approx. 100 PSI)
• Dust Port: 1 x 140 mm
• Air Volume: Approx. 900 CFM

Machine Dimensions
• Length: 4300 mm (170”)
• Width: 1300 mm (52”)
• Height: 1400 mm (55”)
• Weight: 900 kg (approx. 2,000 lbs)

⸻

🔧 Condition
• Lightly used – very clean condition
• All stations fully tested and operational
• Second glue pot included, ready for PUR/EVA rotation
• Minor cosmetic wear consistent with regular use

⸻

📦 Additional Notes
• Ideal for modern cabinet shops and millwork producers
• Full-featured configuration with no upgrades needed
• Save thousands vs new and have immediately
