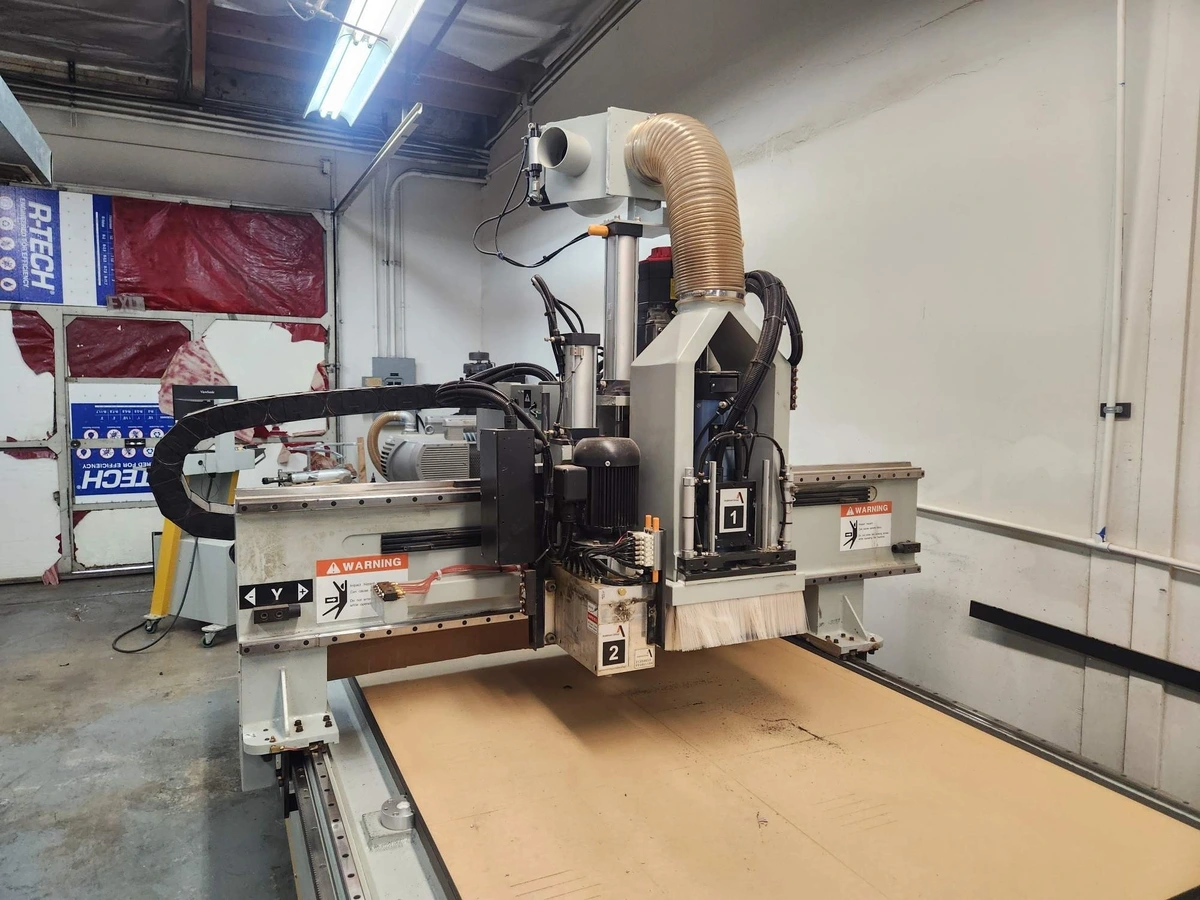

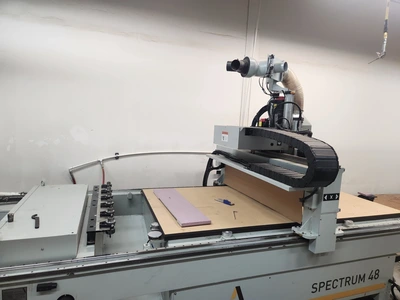

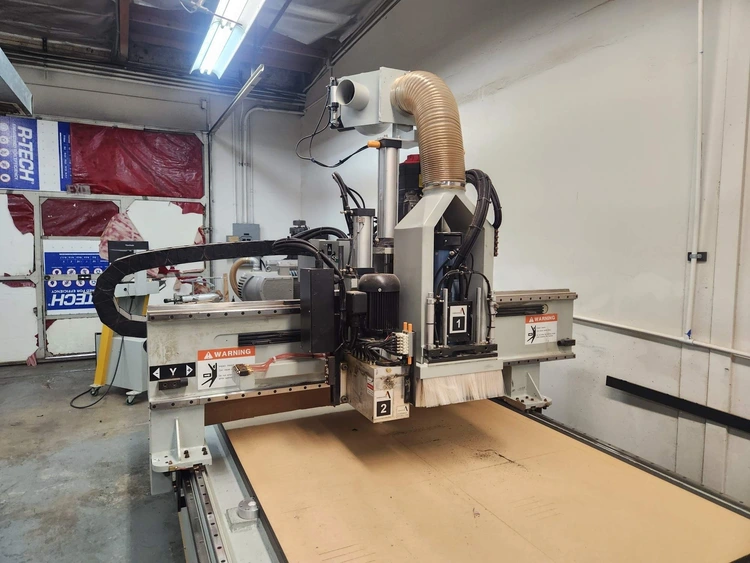

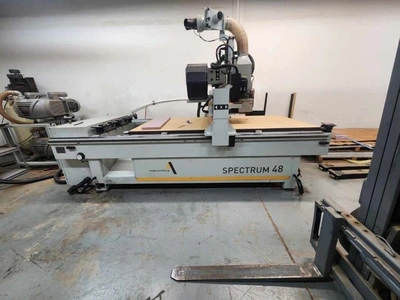

2023 ANDERSON Spectrum M48

✅ Machine Specifications

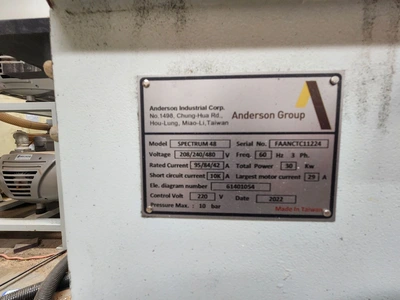

• Model: Spectrum-M48
• Year: 2023
• Table Size: 1300 mm x 2500 mm (51” x 98”)
• X-Axis Stroke: 2580 mm (101”)
• Y-Axis Stroke: 1585 mm (62”)
• Z-Axis Stroke: 200 mm (8”)
• Rapid Travel:
 • X/Y: 60 m/min (2,362 in/min)
 • Z: 12 m/min (472 in/min)
• Max Traverse: 85 m/min (3,350 in/min)
• Spindle: 12 HP HSK-63F, 22,000 RPM
• Tool Changer: 6-position rack-style ATC
• Boring Block: 6-inline drills
• Vacuum Pumps: (2) Becker 9HP rotary vane, oil-less
• Vacuum Zones: 1

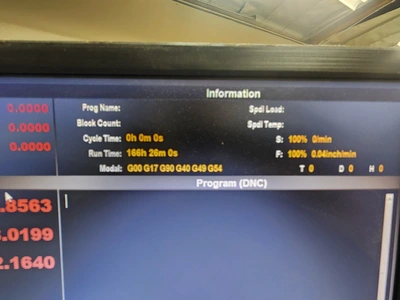

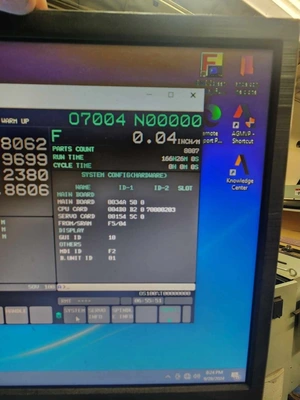

• Controller: FANUC 0i
• Operator Interface: AGMVP touchscreen HMI
• Drives:
 • X/Y: Helical Rack & Pinion
 • Z: Ball Screw
• Machine Weight: Approx. 2,700 kg (6,000 lbs)

⸻

🔧 Condition
• 2023 build – very low hours
• Excellent mechanical and cosmetic condition
• Powered and tested – ready for immediate use
• Clean table, tight motion, all controls functional

⸻

📦 Included Equipment
• Dual Becker 9HP vacuum pumps
• AGMVP touch interface
• Tool holders and boring block
• Manuals, cables, connectors

⸻

📍 Location: Phoenix, Arizona
Shipping prep and nationwide shipping support available.

All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyer’s sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
