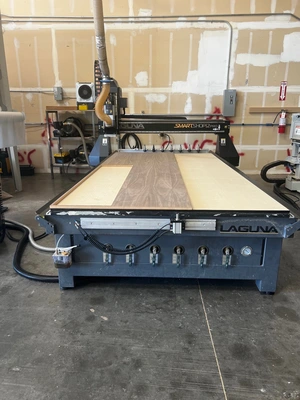

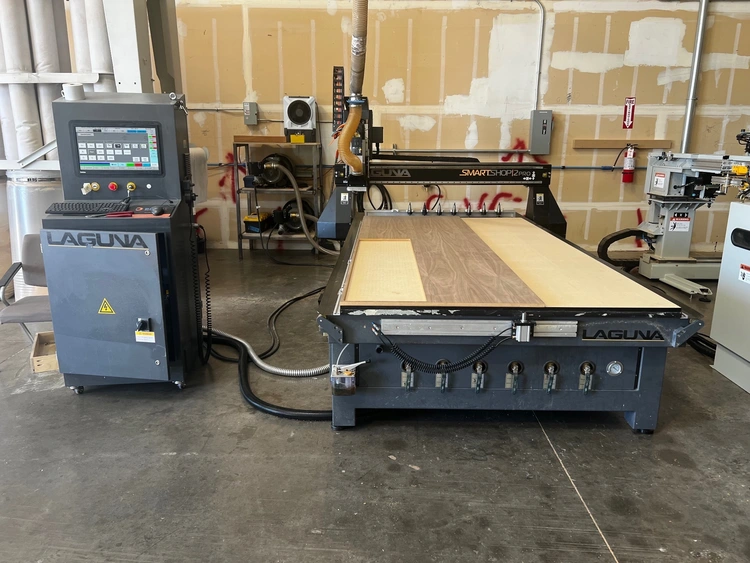

2023 LAGUNA SMART SHOP 2

✅ Machine Specifications
• Make: Laguna Tools

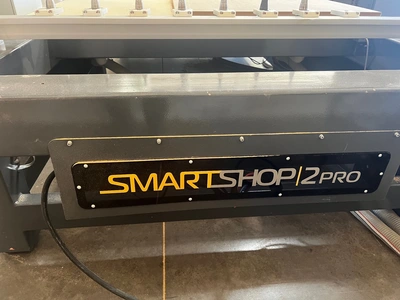

• Model: SmartShop 2 510 (5′ × 10′)
• Year: 2023
• Control: Syntec CNC Control
• Table Size: 5′ × 10′ (1.52 m × 3.05 m)
• Tool Changer: 8-Position Rack-Style (ISO 30 Tool Holders)
• Spindle: 12 HP HSD Spindle (5,000 – 24,000 RPM)

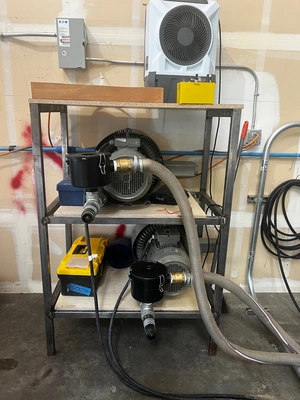

• Vacuum System: Dual High-Flow Vacuum Blowers / Multi-Zone Vacuum Table (6 Zones)
• Drive System: Rack & Pinion on X/Y Axes | Ball Screw on Z-Axis
• Power Requirement: 3 Phase / 220 V / 60 Hz
• Machine Footprint: Approx. 12.5′ L × 7.5′ W × 6′ H
• Weight: Approx. 5,000 lb

⸻

✅ Performance & Features
• Automatic Tool Changer for quick bit change cycles
• High-precision Italian HSD spindle for clean edge finishing
• Dual vacuum pumps provide strong hold-down on nested sheets
• Multi-zone table allows optimized vacuum use for partial sheet jobs
• Syntec industrial controller with intuitive interface and handwheel
• Heavy steel frame with precision machined gantry assembly
• Tool length sensor and automatic Z height calibration

⸻

🔧 Condition
• Used – very good working condition
• Clean, fully operational, and ready for inspection
• All axes run smoothly; spindle and vacuum systems functioning properly
• Includes dual vacuum pumps and tool holders (if desired)
• Located in Las Vegas, NV – available for demo under power

⸻

📦 Additional Notes
• Ideal for cabinet shops, closet manufacturers, and panel processors
• Perfect upgrade for shops transitioning to automated nested CNC production
• Freight and rigging services available upon request
• Financing options available

All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyer’s sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
