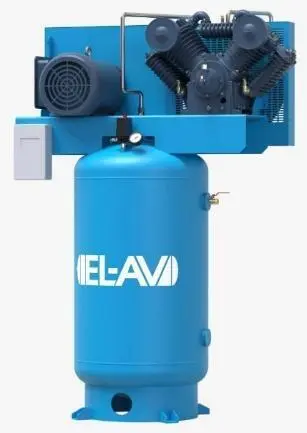

The BL Series from EL-AV is engineered for durability and dependable performance in demanding shop environments. Built with rugged cast-iron components, precision-balanced two-stage pumps, and integrated intercooler/aftercooler systems, these compressors are made to last. The 10 HP single-phase model delivers strong air performance while maintaining quiet operation and long service life.
Key Features:

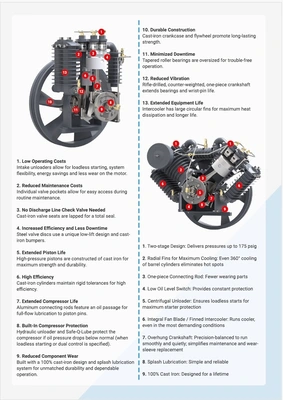

• 2-stage cast iron pump delivers pressures up to 175 PSI
• Heavy-duty NEMA motor with 1,750 RPM for quiet, cool operation
• Splash lubrication system with low-maintenance cast-iron crankcase
• Built-in magnetic motor starter with overload protection
• 80-gallon vertical ASME tank with 110V timed auto drain
• Integrated intercooler and aftercooler for improved moisture control
⸻
Technical Specifications
• Model: BL6010BGHP1P
• Tank Size: 80 Gallon (Vertical)
• Motor HP: 10 HP
• Voltage: 208V / 230V, Single Phase
• Max Pressure: 175 PSI
• SCFM @ 175 PSI: 36
• Pump Model: BL-60
• Motor RPM: 1750
• Noise Level: 76 dB(A)
• Outlet Connection: NPT 3/4”
• Dimensions (L x W x H): 32” x 27” x 81”
• Weight: 948 lbs (Shipping weight: 1065 lbs)
