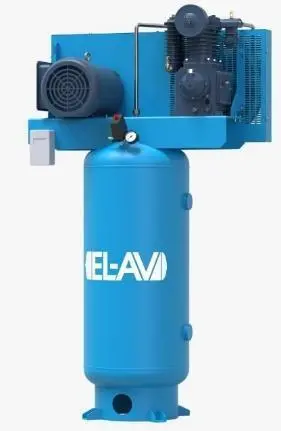

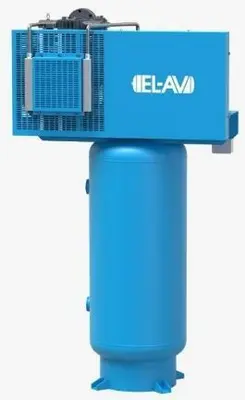

The BL3060GH1P delivers rugged performance in a compact footprint. With a 5 HP motor and a 60-gallon vertical tank, it’s ideal for small to medium shops needing consistent air pressure without sacrificing durability. Built with a heavy-duty cast-iron pump and splash-lubricated crankcase, this model offers extended equipment life and low maintenance.
Key Features:
• Two-stage cast iron pump – up to 175 PSI
• Heavy-duty 1,750 RPM motor for cooler, quieter operation
• Splash-lubricated cast iron crankcase for long life
• Integrated intercooler improves performance and reduces moisture
• ASME-certified 60-gallon tank with 110V auto drain
• Factory-mounted belt guard for operator safety
⸻
Technical Specifications
• Model: BL3060GH1P
• Tank Size: 60 Gallon (Vertical)
• Motor HP: 5 HP
• Voltage: 208V / 230V, Single Phase
• Max Pressure: 175 PSI
• SCFM @ 175 PSI: 18
• Pump Model: BL-30
• Motor RPM: 1750
• Noise Level: 73 dB(A)
• Outlet Connection: NPT 3/4”
• Dimensions (L x W x H): 76” x 30” x 56”
• Weight: 725 lbs (Shipping weight: 920 lbs)
