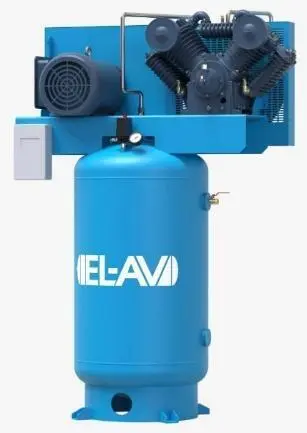

The BL30780GH1P strikes the perfect balance between air performance and electrical flexibility. Featuring a larger 80-gallon tank and a 7.5 HP motor, this unit is ideal for growing shops or production facilities. It includes all the standard reliability features of the BL Series, with a low-speed motor and robust steel components for extended life.

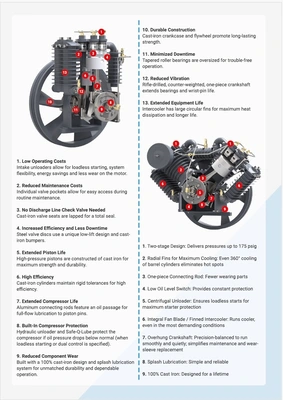

Key Features:
• 7.5 HP motor with industrial-duty, 2-stage cast iron pump
• Delivers 31 SCFM @ 175 PSI for higher demand environments
• 80-gallon vertical ASME tank with timed auto drain
• Finned intercooler and aftercooler reduce operating temperatures
• Oversized bearings and oil-level protection for longer run cycles
• Single-phase 208V/230V power — plug-and-play for most shops
⸻
Technical Specifications
• Model: BL30780GH1P
• Tank Size: 80 Gallon (Vertical)
• Motor HP: 7.5 HP
• Voltage: 208V / 230V, Single Phase
• Max Pressure: 175 PSI
• SCFM @ 175 PSI: 31
• Pump Model: BL-30
• Motor RPM: 1750
• Noise Level: 73 dB(A)
• Outlet Connection: NPT 3/4”
• Dimensions (L x W x H): 76” x 30” x 56”
• Weight: 765 lbs (Shipping weight: 970 lbs)
