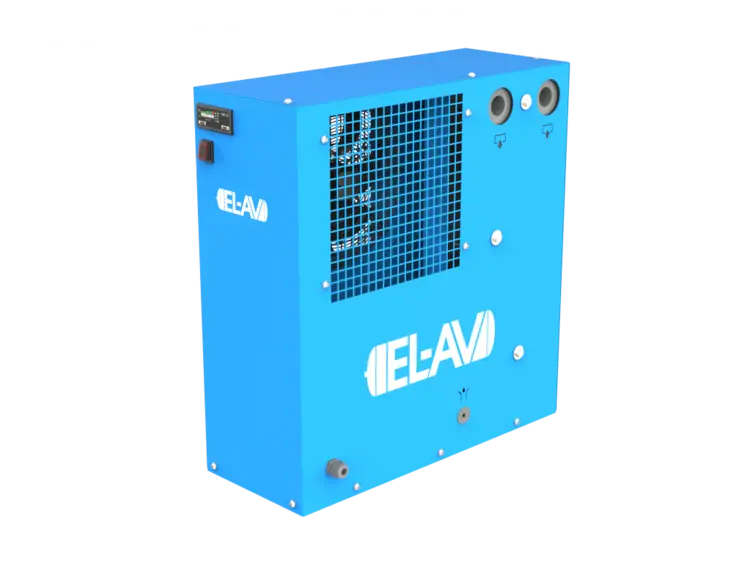

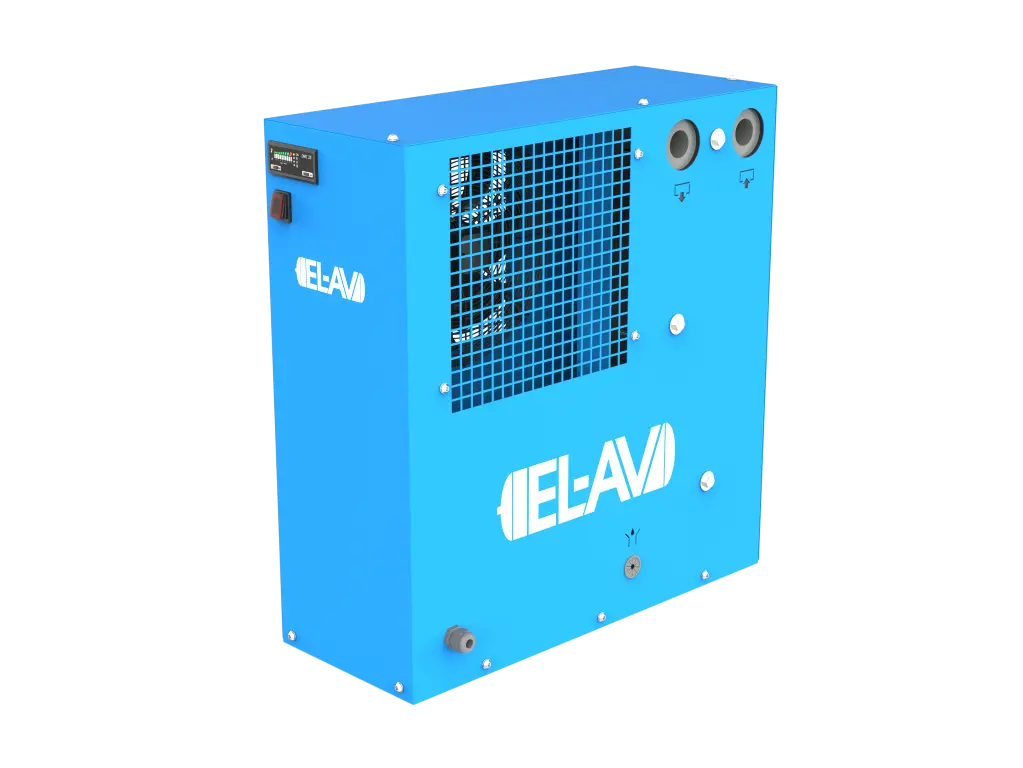

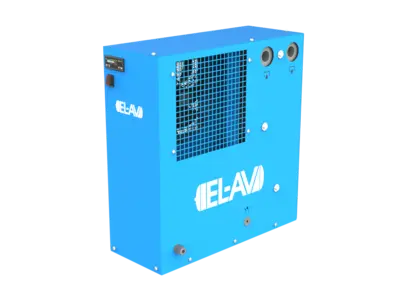

The ELRD60SU is a compact and efficient refrigerated air dryer engineered for small to mid-size compressed air systems. It ensures clean, dry air by lowering the dew point and preventing moisture-related damage in downstream equipment. With smart energy-saving controls and compatibility with zero-loss automatic drains, this dryer is ideal for businesses focused on reducing operating costs without compromising performance.
Key Benefits:
• Energy-efficient refrigeration system minimizes compressor run time
• Compatible with zero-loss automatic drains for improved air system efficiency
• Eco-friendly R134a refrigerant with low global warming potential
• Reliable performance in ambient temperatures up to 115°F (45°C)
• Quiet operation under 70 dB(A) — suitable for shop floor installation
⸻
Technical Specifications
• Model: ELRD60SU
• Rated Flow: 60 SCFM (102 m³/h)
• Pressure Dew Point (nominal): 41°F (5°C)
• Inlet Air Pressure (nominal/max): 100 psig (7 bar) / 230 psig (16 bar)
• Ambient Temp Range: 34°F (1°C) to 115°F (45°C)
• Inlet Air Temp Range: 100°F (nominal) / 130°F (max)
• Max Pressure Drop: 2.5 psi (0.17 bar)
• Connections: 1” NPT-F (inlet/outlet)
• Refrigerant Type/Qty: R134a, 8.3/4 oz (0.250 kg)
• Cooling Air Flow: 240 CFM (400 m³/h)
• Heat Load: 2560 BTU/h
• Voltage: 115V / 1Ph / 60Hz
• Electric Consumption:
– Nominal: 0.30 kW / 3.8 A
– Max: 0.35 kW / 4.4 A
• Noise Level: < 70 dB(A)
• Weight: 59 lbs (27 kg)
