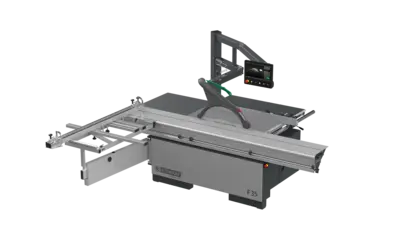

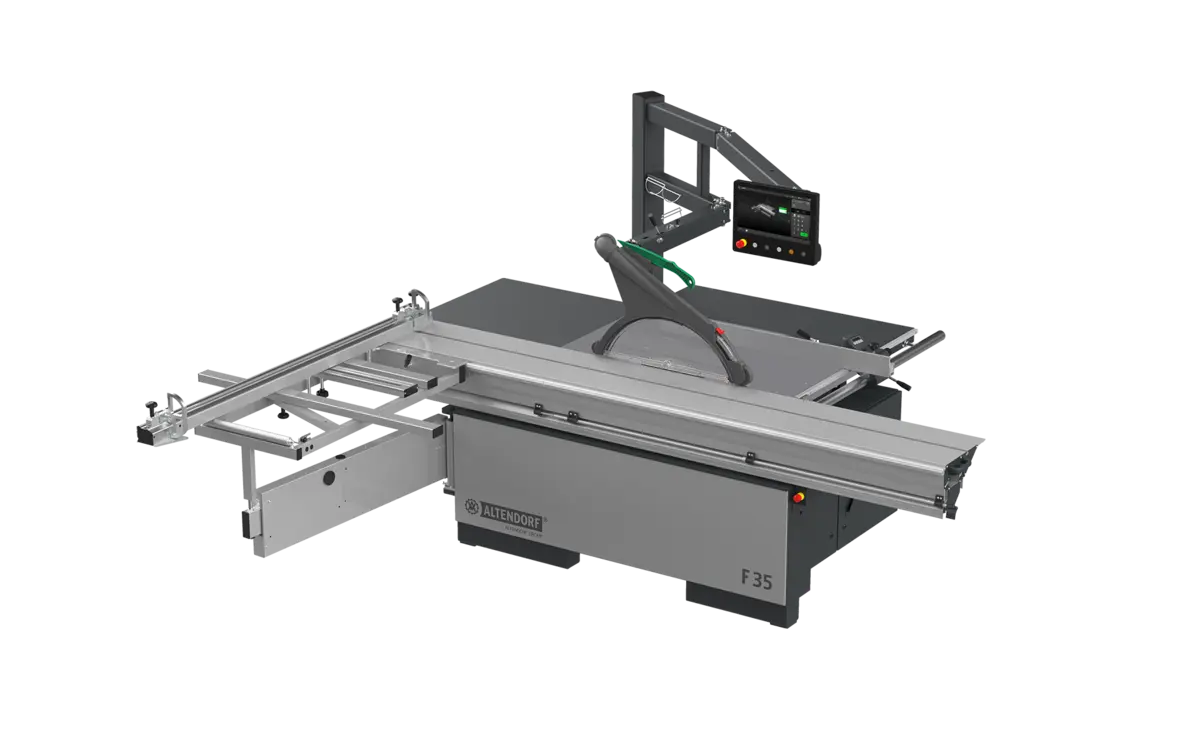

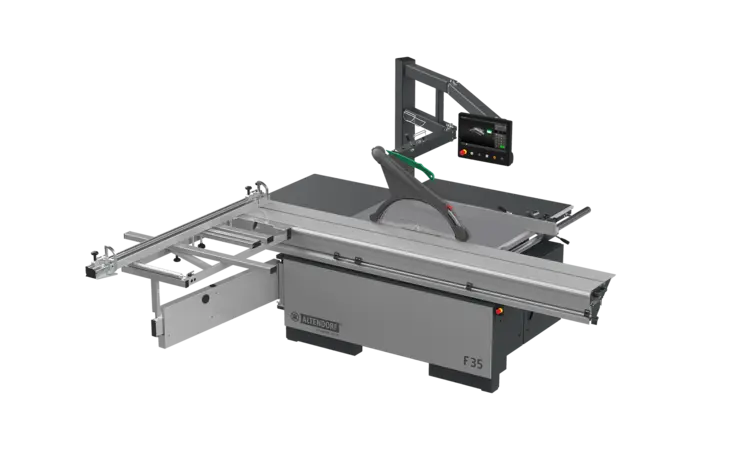

The Altendorf F35-II is a premium German-made sliding table saw designed for precision, repeatability, and operator comfort. Built with a rigid steel frame and powered blade adjustment, it delivers smooth, accurate cuts over decades of use. The hallmark Altendorf double-roller carriage glides effortlessly for high-performance panel processing, while the 15” swiveling touchscreen interface ensures intuitive operation.
This machine features a motorized scoring unit, a digitally read rip fence (DIGIT X), and a crosscut miter fence with integrated stops and length compensation. Combined with LED hazard lighting and optional RAPIDO scoring adjustment, the F35-II simplifies complex panel work while improving safety, speed, and precision.
SPECIFICATION HIGHLIGHTS
• Model: F35-II with powered rise, fall, and tilt
• Sliding Table Length: 126” (3200 mm)
• Main Motor: 7.5 HP (5.5 kW)
• Scoring Unit: Independent motor with two-piece shimmed blade
• Rip Fence: Manual, 55” capacity with DIGIT X digital readout
• Crosscut Fence: Crosscut miter style, angles to 49°, stops to 126”
• Blades Included: 12” dia 72T main sawblade and split scoring blade
• Certification: UL certified and marked accordingly
⸻
TECHNICAL SUMMARY
⸻
SLIDING TABLE
• Sliding Table Length: 3200 mm (126”)
• Cutting Length: 3105 mm (122”)
• Locking Mechanism: Infinite
⸻
CROSSCUT FENCE
• Type: Crosscut miter
• Maximum Width: 3500 mm (137”)
• Cross Stop Type: Manual
• Number of Stops: 2
• Readout: Scale
• Miter Angle Capacity: 0° – 49°
⸻
RIP FENCE
• Ripping Capacity: 1410 mm (55”)
• Adjustment: Manual
• Readout: Digital via DIGIT X
⸻

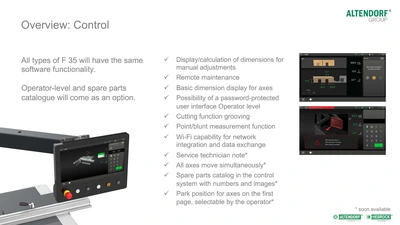

CONTROL

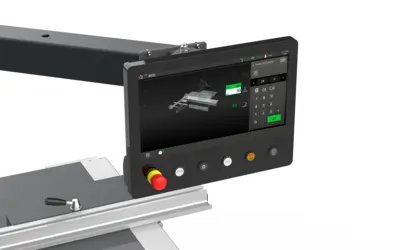

• Control Panel: 15” touchscreen (swiveling mount)
• Display: Digital for tilt angle
• Functions:
– Blade rise/fall
– Main saw and scorer on/off
⸻
MAIN SAW UNIT
• Motor: 5.5 kW (7.5 HP)
• RPM Settings: 3,000 / 4,000 / 5,000
• Rise and Fall Adjustment: Powered
• Tilt Mechanism: Powered
• Tilt Range: 0° to +46°
⸻
MAIN SAWBLADE DETAILS
• Max Blade Diameter: 450 mm (17.7”)
(Scoring blade must be removed when using >400 mm blade)
• Max Dado Width: 20 mm (0.78”)
• Arbor Diameter: 30 mm
• Included Main Blade: 300 mm diameter
• Riving Knives Included: 3 (for 300–450 mm blades)
⸻
SAW BLADE PROJECTION
• 90° w/ Max Blade: 150 mm (5.9”) (no scoring blade)
• +45° w/ Max Blade: 103 mm (4”) (no scoring blade)
⸻
SCORING UNIT
• Motor: 0.75 kW (1 HP)
• RPM: 8,200
• Height Adjustment: Motorized
• Lateral Adjustment: Manual
• Blade Type: Two-piece shimmed scoring blade
⸻
SCORING BLADE DETAILS
• Blade Diameter: 120 mm (4.7”)
• Adjustment Range: 3.0 – 3.8 mm (0.118” – 0.15”)
⸻
SERVICES
• Electrical: 220V or 440V, 3-phase, 60 Hz
(Acceptable range: +5% / –10%)
• Full Load Amps:
– 23A @ 220V
– 13.5A @ 440V
• Dust Extraction: Approx. 900 CFM
• Dust Ports:
– Saw guard: 80 mm (3.15”)
– Base: 120 mm (4.75”)
⸻
SHIPPING DIMENSIONS
Two-Piece Shipment:
• Machine: 91” L x 75” W x 78” H – 2,080 lbs
• Table: 140” L x 30” W x 18” H – 550 lbs
