New ALTENDORF F35 TYPE III 3200 | Standard Sliding Table Saws
Have one to sell?
ConditionNew
1 available
New

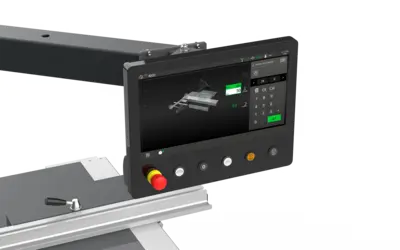

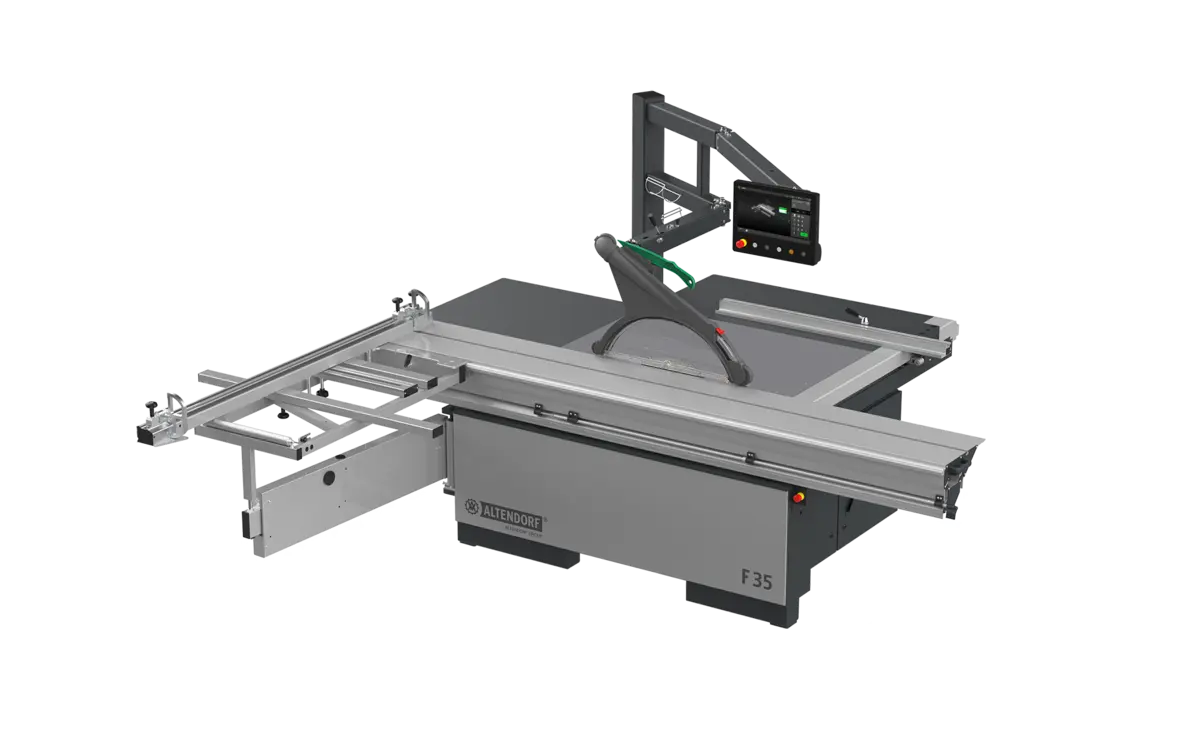

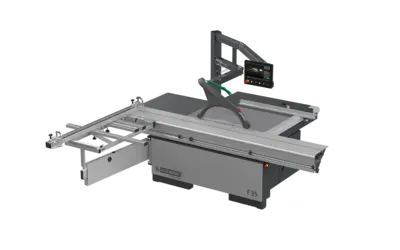

The Altendorf F 35 Type 3 is designed as a central production machine for modern workshops. Its solid steel construction ensures long-term stability, smooth running characteristics, and reliable performance. A proven double-roller carriage, combined with motorized blade height and tilt, delivers high precision and operator comfort for daily production. The new 15” eye-level touch control — swiveling and tiltable — simplifies setup and supports safe, efficient operation.
For increased automation and repeatability, the Type 3 features a motorized CNC rip fence with the DIGIT L Crosscut Fence and interpolating axis movements. This configuration delivers enhanced convenience, dimensional accuracy, and flexibility when processing panels and solid wood components.
A large, modern display consolidates function control, making machine operation intuitive and clear. The scoring unit includes LED illumination for the hazard area and supports the included RAPIDO system for rapid scoring adjustments and clean, chip-free edges across diverse panel materials.
Together, these features make the F 35 Type 3 a precise, flexible, and operator-friendly solution that improves workflow efficiency and supports future-ready production environments.
Specification Highlights
• Model: F35-III with powered rise, fall, and tilt
• 126” long sliding table
• 7.5 hp high-torque main motor
• Scoring with independent 1 hp motor
• CNC Rip Fence with 55” capacity
• Crosscut miter fence with angles to 49° and stops to 126”
• RAPIDO scoring system with LED illumination
• On/off switches on the sliding table
• 12” diameter 72T sawblade and RAPIDO scoring blade included
• The F35-III is UL certified and marked accordingly on the machine
⸻
TECHNICAL SUMMARY
SLIDING TABLE
• Sliding Table Length: 3200 mm (126”)
• Cutting Length: 3105 mm (122”)
• Table Locking Mechanism: Infinite
CROSSCUT FENCE
• Type: Cross cut miter
• Maximum Width: 3500 mm (137”)
• Type of Cross Stop: Manual
• Number of Stops: 2
• Readout: Scale + DIGIT L
• Miter Angle Capacity: 0 – 49°
RIP FENCE
• Ripping Capacity: 1410 mm (55”)
• Adjustment: CNC programmable
• Readout: Digital
CONTROL
• Control Panel: Touch screen 15”
• Display: Digital for tilt angle and rip position
• Other Functions:
• Rise/fall and tilt of main saw
• Start/Stop of saw and scorer
MAIN SAW UNIT
• Motor: 5.5 kW (7.5 HP)
• RPM Options: 3,000 / 4,000 / 5,000
• Blade Adjustment: Powered rise, fall, and tilt
• Tilt Range: 0° to +46°
MAIN SAWBLADE DETAILS
• Max Blade Diameter: 450 mm (17.7”) – scoring blade must be removed above 400 mm
• Max Blade Width (Dado): 20 mm (0.78”)
• Arbor Diameter: 30 mm
• Included Main Blade: 300 mm dia. 72T
• Riving Knives Included: 3 (to suit 300 – 450 mm blades)
SAW BLADE PROJECTION
• 90° with Max Blade (450 mm): 154 mm (6”) without scorer
• +45° with Max Blade (450 mm): 105 mm (4”) without scorer
SCORING UNIT
• Motor: 0.75 kW (1 HP)
• RPM: 8,200
• Adjustment:
• Height: Motorized
• Lateral: Motorized
• Blade Type: RAPIDO (shimless)
• LED Indicator: Yes (when scorer is active)
SCORING BLADE DETAILS
• Blade Diameter: 120 mm (4.7”)
• Adjustment Range: 3 – 3.8 mm (0.118” – 0.15”)
SERVICES
• Electrical Connection: 220 / 440V, 3-phase, 60Hz (±5% / -10%)
• Full Load Amps: 23A @ 220V / 13.5A @ 440V
• Dust Extraction: Approx. 900 CFM
• Saw Guard Port: 80 mm (3.15”)
• Bottom Port: 120 mm (4.75”)
SHIPPING DIMENSIONS
• Machine: 91” x 75” x 78”, ~2,080 lbs
• Table: 140” x 30” x 18”, ~550 lbs
