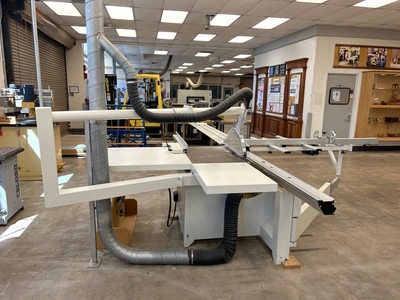

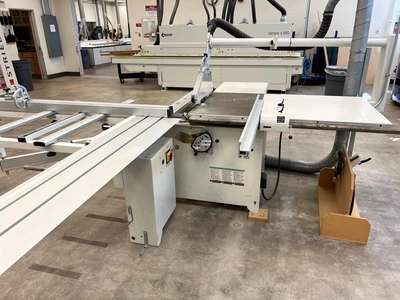

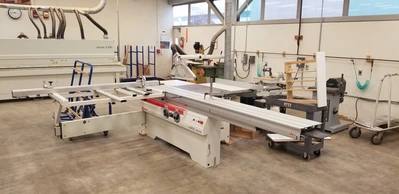

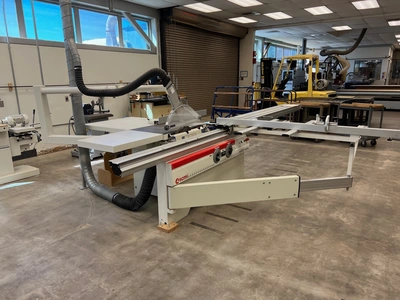

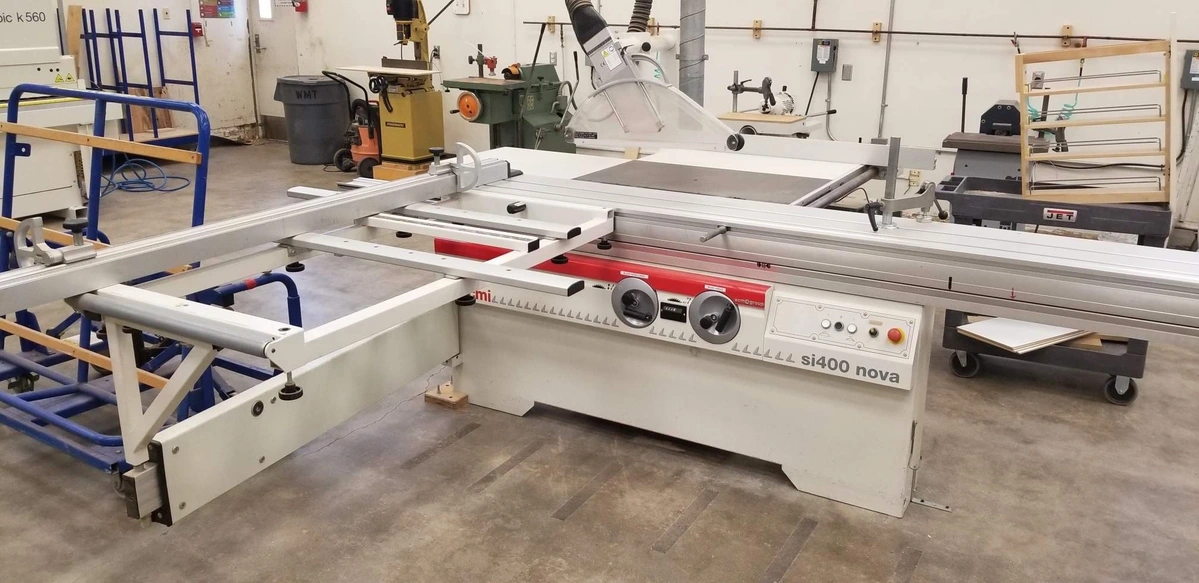

2015 SCMI SI 400 Nova

✅ SPECIFICATION HIGHLIGHTS
• Model: SI 400 Nova with manual rise, fall, and tilt
• 126” sliding table stroke (3200 mm)
• Main motor 9 HP
• Independent scoring unit (approx. 1 HP)
• Manual rip fence with approx. 50” capacity (1270 mm)
• Crosscut miter fence with flip stops and large panel capacity
• Max blade diameter 400 mm (15.75”) with scoring unit
• Blade tilt 0° – 45°
• Heavy-duty sliding carriage on hardened steel guides

⸻

📐 TECHNICAL SUMMARY

⸻

SLIDING TABLE

• Sliding Table Length: 3200 mm (126”)
• Squaring Capacity: Up to 3200 x 3200 mm
• Construction: Hardened steel guide system for smooth travel

⸻

CROSSCUT FENCE

• Type: Crosscut miter
• Maximum Width: Approx. 3200 mm (126”)
• Type of Cross Stop: Manual
• Number of Stops: 2
• Readout: Scale
• Miter Angle Capacity: 0 – 45°

⸻

RIP FENCE

• Ripping Capacity: Approx. 1270 mm (50”)
• Adjustment: Manual
• Readout: Scale

⸻

CONTROL

• Control Panel: Front-mounted handwheel controls
• Display: Analog/manual readout
• Functions:
 – Blade rise and fall
 – Blade tilt
 – Scoring unit adjustment

⸻

MAIN SAW UNIT

• Motor: Approx. 9 HP
• RPM: Approx. 3,000 / 4,000 / 5,000
• Blade rise and fall adjustment: Manual
• Tilt mechanism: Manual
• Tilt range: 0° – 45°

⸻

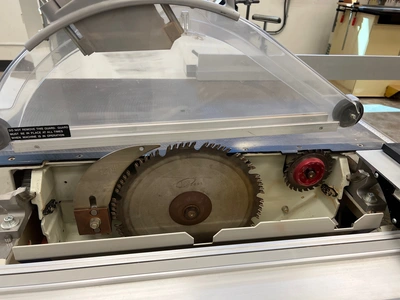

MAIN SAWBLADE DETAILS

• Max blade dia: 400 mm (15.75”)
• Arbor dia: 30 mm
• Max cutting height:
 – 140 mm (5.5”) @ 90°
 – 97 mm (3.8”) @ 45°

⸻

SAW BLADE PROJECTION

• 90° with max blade: 140 mm (5.5”)
• +45° with max blade: 97 mm (3.8”)

⸻

SCORING UNIT

• Motor: Approx. 1 HP
• RPM: Approx. 8,500 RPM
• Adjustment:
 – Height: Manual
 – Lateral: Manual
• Blade type: Two-piece scoring blade

⸻

SCORING BLADE DETAILS

• Blade dia: 120 mm (4.7”)
• Adjustment range: Shim-adjustable

⸻

SERVICES

• Electrical: 230V / 3-phase / 60 Hz
• Dust extraction: Approx. 900 – 1100 CFM
• Dust ports:
 – Saw guard: ~80 mm (3.15”)
 – Bottom port: ~120 mm (4.75”)
