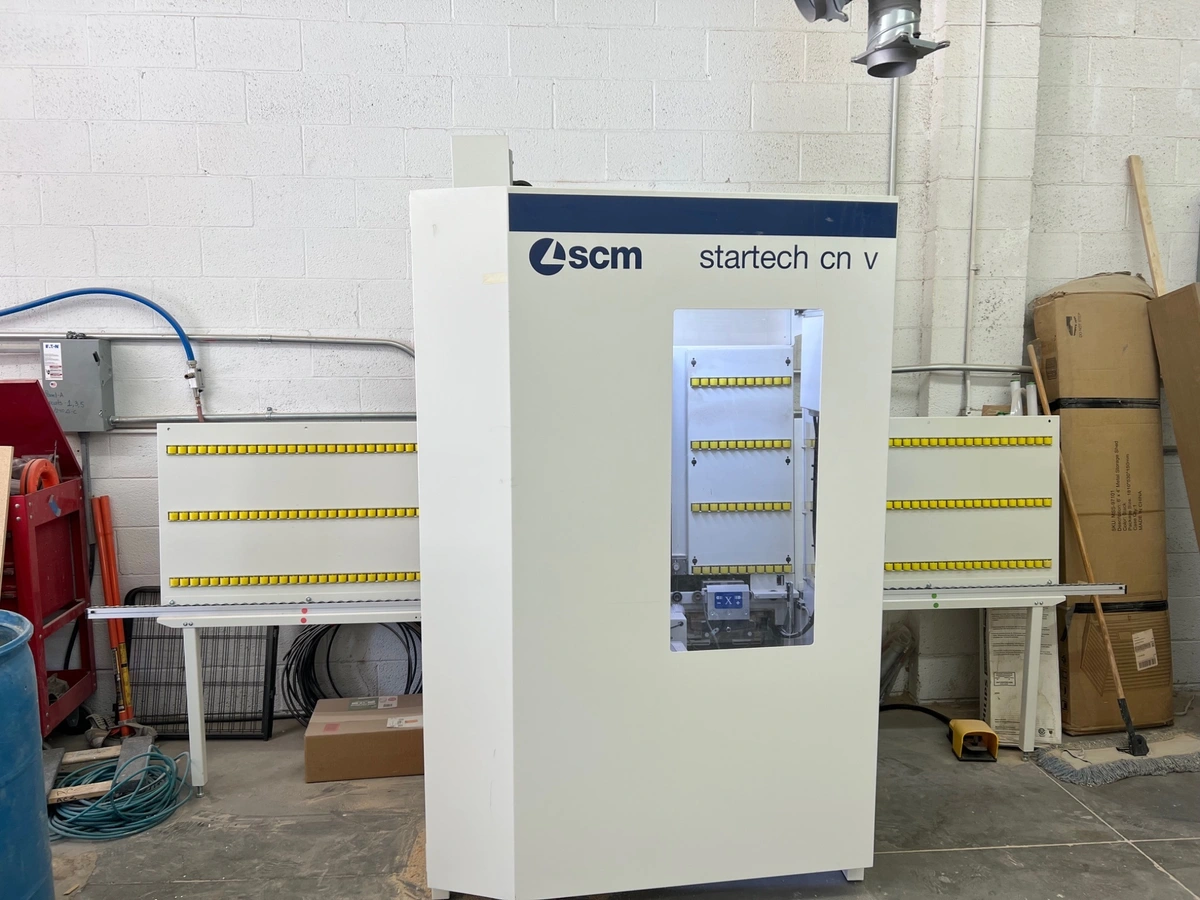

CM Startech cn v – Vertical CNC Boring and Grooving Center
2024 Model, Less Than 20 Operating Hours, Near-New Condition, Touchscreen CNC Control, Horizontal and Vertical Drilling, Integrated Grooving Blade
This is a late-model SCM Startech cn v vertical CNC boring and grooving center designed for cabinet manufacturing, closets, casework, and panel processing applications.
The machine is configured for high-speed vertical and horizontal drilling operations as well as grooving applications in a compact and efficient footprint. The Startech cn v is ideal for shops seeking CNC drilling capability without the complexity or floor space requirements of a full nested CNC router.
This machine is in exceptionally clean condition with less than 20 operating hours and was installed but never fully placed into production.
Suitable for processing MDF, particleboard, plywood, melamine, laminated panels, and cabinet components.
Commonly used as a CNC boring machine, vertical CNC drill, cabinet drilling center, line boring machine, or woodworking CNC machining center.
Machine Specifications
• Make: SCM
• Model: Startech cn v
• Machine Type: Vertical CNC Boring and Grooving Center
• Year: 2024
• Operating Hours: Less than 20
---
Control System

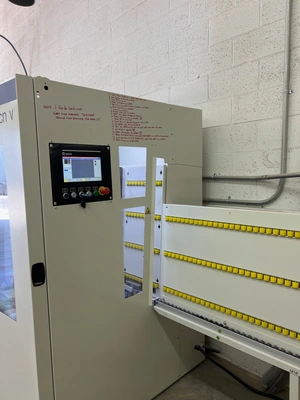

• 10” touchscreen CNC control
• Direct machine-side programming capability
• USB import / export functionality
• Compatible with Maestro and CAD/CAM workflows
• Automatic drilling cycle optimization
---
Machine Configuration

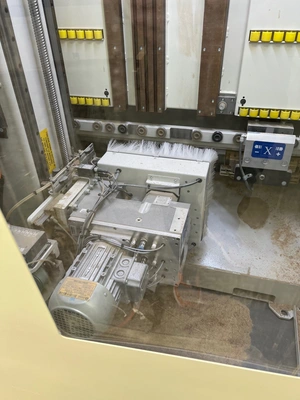

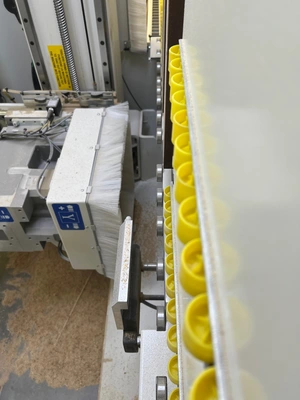

• 8 vertical independent drilling spindles
• 6 horizontal drilling spindles
• Integrated grooving blade
• SCM patented Ro.Ax. spindle technology
• Ball screw axis movement
• Linear guideways with recirculating bearings
• Automatic lubrication system
• Panel calibration sensor
• Internal machine lighting
• Electrical cabinet cooling fans
---
Capacity Specifications
• Panel Length Capacity: 11.8” – 118”
• Panel Width Capacity: 3.5” – 35.4”
• Panel Thickness Capacity: 3/8” – 2”
• Maximum Axis Speed: 66 ft/min
---
Drilling / Grooving Specifications
• Drilling Head Motor: 3 HP
• Spindle Speed: 4460 RPM
• Grooving Blade Speed: 5700 RPM
• Maximum Blade Diameter: 125 mm
---
Electrical / Requirements
• 220V / 3 Phase / 60 Hz
• Approx. 15A requirement
• Recommended extraction: approx. 476 CFM
• Pneumatic operating pressure: 6.5 bar
---
Applications
• Cabinet manufacturing
• Closet systems
• Casework production
• Architectural millwork
• Panel processing
• Furniture manufacturing
---
Additional Notes
• Near-new condition
• Installed but never fully placed into production
• Compact footprint with high production capability
• Immediate availability
• Avoid new machine lead times and commissioning delays
• Current replacement cost approximately $45,000 – $50,000 installed
• Available for inspection
• Freight and financing options available
All information, including specifications, photos, and videos, has been obtained from third-party sources and is believed to be accurate. However, no guarantees or warranties are expressed or implied. Buyer is responsible for independently verifying machine condition, specifications, and all relevant details prior to purchase.
