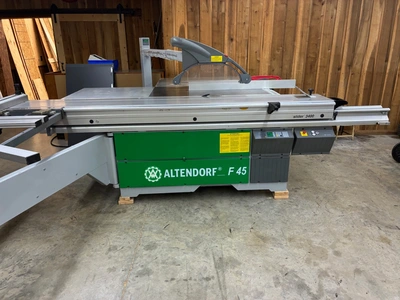

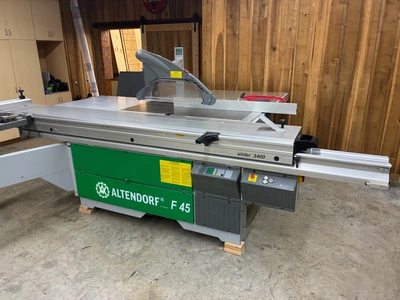

Used 2005 ALTENDORF F45 3400 | Woodworking Table Saws

Machine Specifications

• Manufacturer: ALTENDORF

• Model: F45

• Year: 2005

• Machine Type: Industrial Sliding Table Panel Saw

• Condition: Excellent

• Sliding Table Length: 3400 mm (134")

• Maximum Cutting Length: 3300 mm (130")

• Rip Capacity: 1300 mm (51")

• Electrical: 220V / 440V • 3 Phase • 60 Hz

---

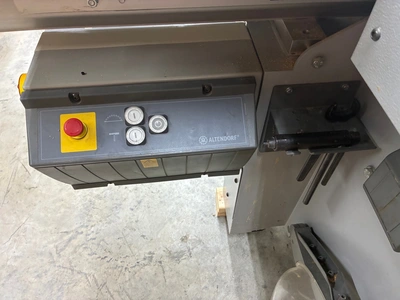

Machine Controls

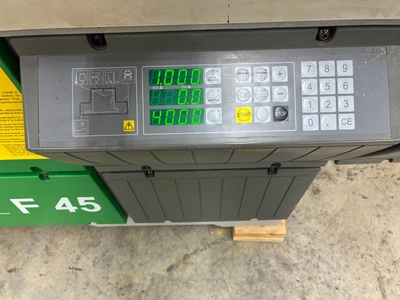

• Knee-level operator control panel

• Powered blade height adjustment

• Powered blade tilt adjustment

• CNC programmable rip fence positioning

• Electronic machine controls

---

Main Saw Unit

• 5.5 kW (7.5 HP) high-torque motor

• Three spindle speeds: 3,000 / 4,000 / 5,000 RPM

• Powered blade height adjustment

• Powered blade tilt adjustment

• Blade tilt range: 0°–46°

---

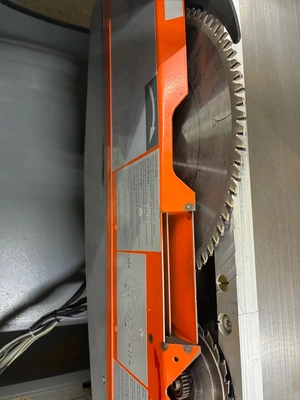

Main Saw Blade

• Maximum blade diameter: 450 mm (17.7")

• Included blade: 300 mm, 72 tooth

• 30 mm arbor

• Maximum dado width: 20 mm (25/32")

• Three riving knives included for 300–450 mm blades

Maximum Cutting Capacity

• 154 mm (6") at 90° with 450 mm blade (scoring unit removed)

• 105 mm (4") at 45° with 450 mm blade (scoring unit removed)

• 130 mm (5.1") at 90° with 400 mm blade and scoring unit installed

• 81 mm (3.1") at 45° with 400 mm blade and scoring unit installed

---

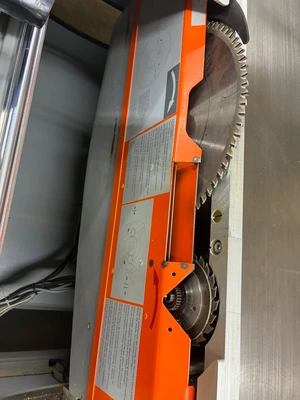

Scoring Unit

• 0.75 kW (1 HP) scoring motor

• 8,200 RPM

• Motorized height adjustment

• Motorized lateral adjustment

• RAPIDO shimless scoring system

• LED scoring operation indicator

• 120 mm (4.7") scoring blade

---

Sliding Table

• Precision 3400 mm (134") sliding table

• Maximum cutting length: 3300 mm (130")

• Infinite sliding table locking system

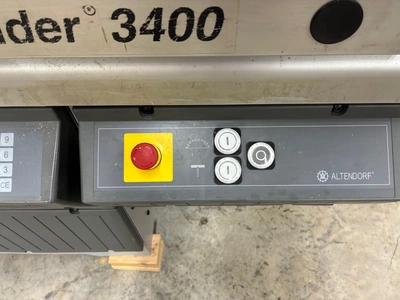

• Start/Stop controls located on both the control panel and sliding table

• Maximum supported workpiece weight: 250 kg (550 lbs.)

---

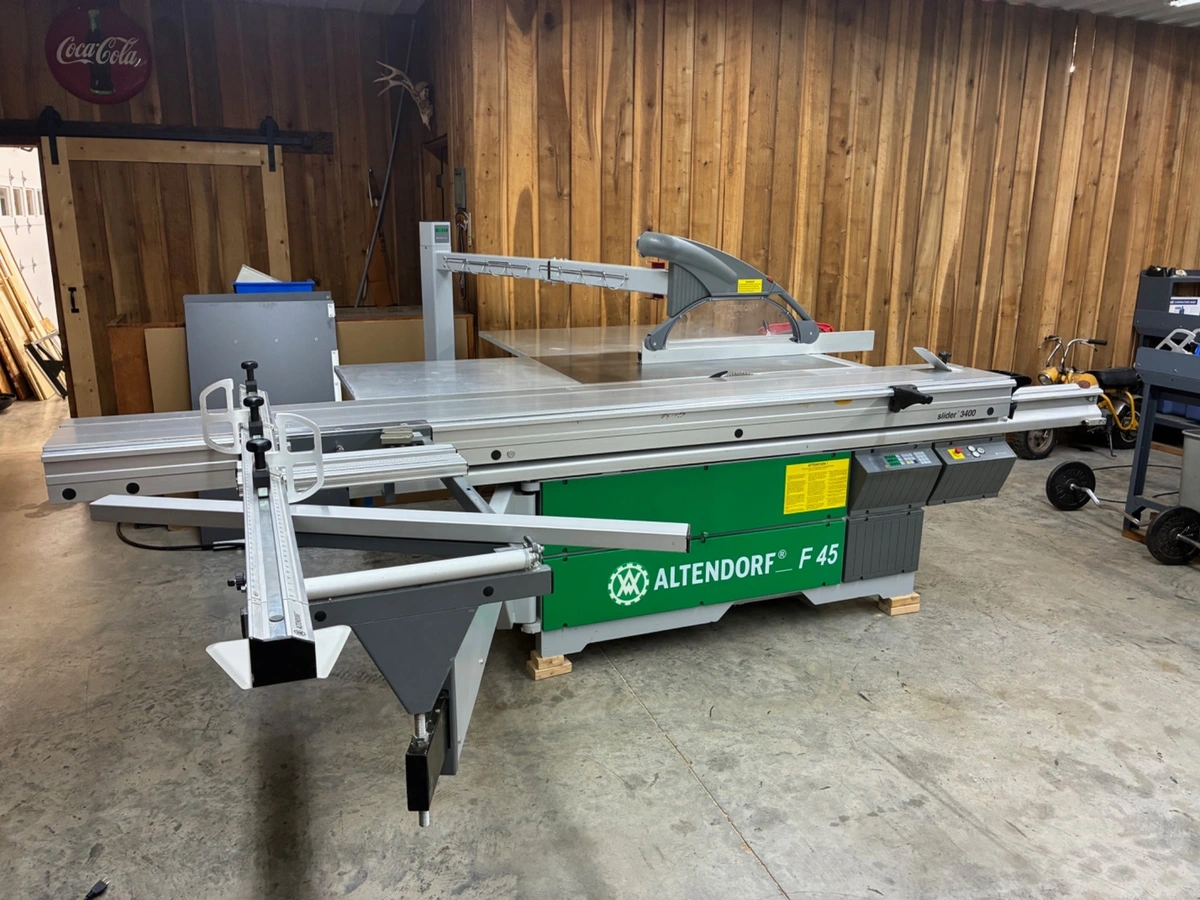

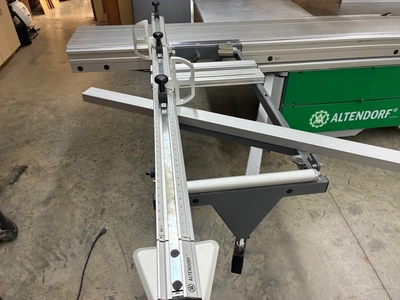

Crosscut Fence

• Heavy-duty crosscut miter fence

• Maximum crosscut capacity: 3500 mm (137") with extension

• Miter angle range: 0°–49°

• Two adjustable flip stops

• Integrated measuring scale with extension fence

---

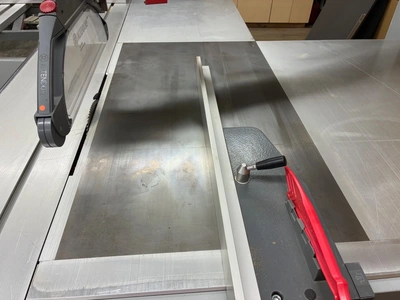

Rip Fence

• CNC programmable rip fence

• Rip capacity: 1300 mm (51")

• Digital position readout

• Traverse speed: 250 mm/sec (9.8"/sec)

• Positioning accuracy: ±0.1 mm (0.004")

---

Machine Configuration

• CNC programmable rip fence

• Precision scoring saw

• Heavy-duty crosscut fence with two flip stops

• Overarm blade guard with integrated dust collection

• Industrial cast-iron machine construction

---

Dust Collection

• Recommended airflow: Approximately 900 CFM

• Overarm guard dust port: 80 mm (3.15")

• Machine base dust port: 120 mm (4.75")

---

Electrical Requirements

• 220V or 440V • 3 Phase • 60 Hz

• Full load current: 30 Amps @ 220V / 15 Amps @ 440V

---

Applications

• Cabinet Manufacturing

• Architectural Millwork

• Closet Systems

• Furniture Manufacturing

• Commercial Casework

• Panel Processing

• Solid Wood Processing

• Precision Dimensioning

---

Operator Benefits

• CNC programmable rip fence minimizes setup time between jobs

• Powered blade positioning delivers fast, repeatable machine setup

• Precision scoring system produces clean, chip-free cuts in laminated materials

• Smooth, maintenance-free sliding table delivers exceptional accuracy

• Outstanding dimensional accuracy minimizes material waste and improves assembly quality

• Extended 3400 mm sliding table provides additional capacity for oversized panels

• Industrial-duty construction designed for years of continuous production

---

Why This Machine Stands Out

• Excellent condition and professionally maintained

• Proven ALTENDORF F45 industrial platform

• CNC programmable rip fence dramatically improves productivity and repeatability

• Extended 3400 mm sliding table accommodates larger workpieces

• Legendary ALTENDORF precision, reliability, and long-term resale value

• Premium industrial sliding table saw built for demanding production environments

• Significant savings compared to purchasing a comparable new premium industrial sliding table saw

---

Availability

• Equipment remains under power and available for inspection

• Inspection available by appointment

• Freight quotes available throughout North America

• Financing available for qualified buyers

• Loading assistance available

All information, including specifications, photos, videos, and descriptions, is believed to be accurate but is not guaranteed. Buyers are encouraged to independently verify machine condition, specifications, tooling, electrical requirements, dimensions, and all other details prior to purchase.
